Overview
The Web connector ingests publicly reachable pages and files from a website you specify. It fetches content over HTTP(S) like a browser, with configurable crawl scope and limits. You can index a single page or use recursive mode to discover more pages by following links.Configuration setup
Setup guide
Setup guide

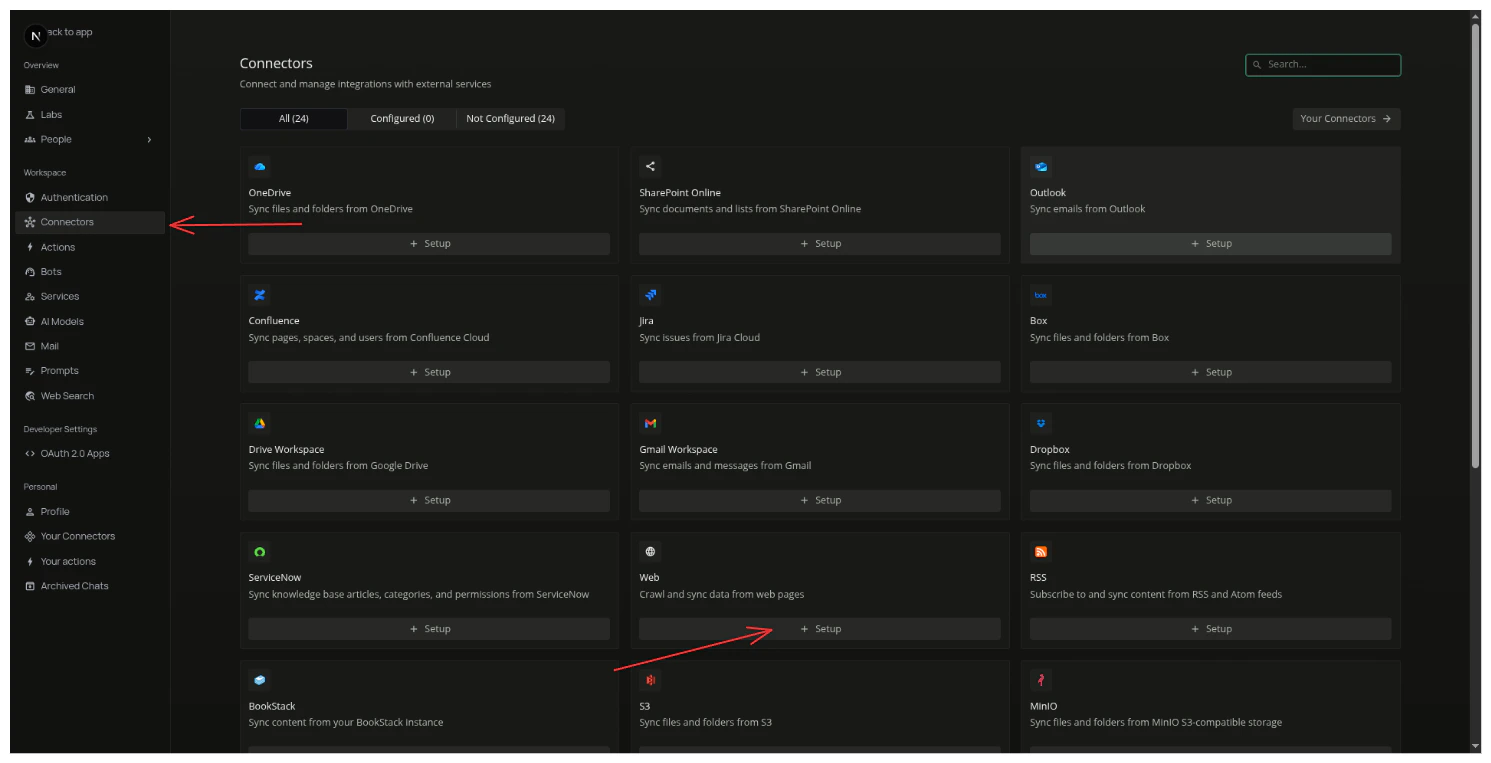

Step 1: Create a Web connector
In PipesHub, add a Web connector instance. There are two scopes to choose from: personal and team.You can create a personal connector from Workspace Settings > Your Connectors > Web > Setup. The records created by this connector will be visible to you only.You can create a team connector from Workspace Settings > Connectors > Web > Setup. The records created by this connector will be visible to all users in your organization. This connector can be created by Admins only.

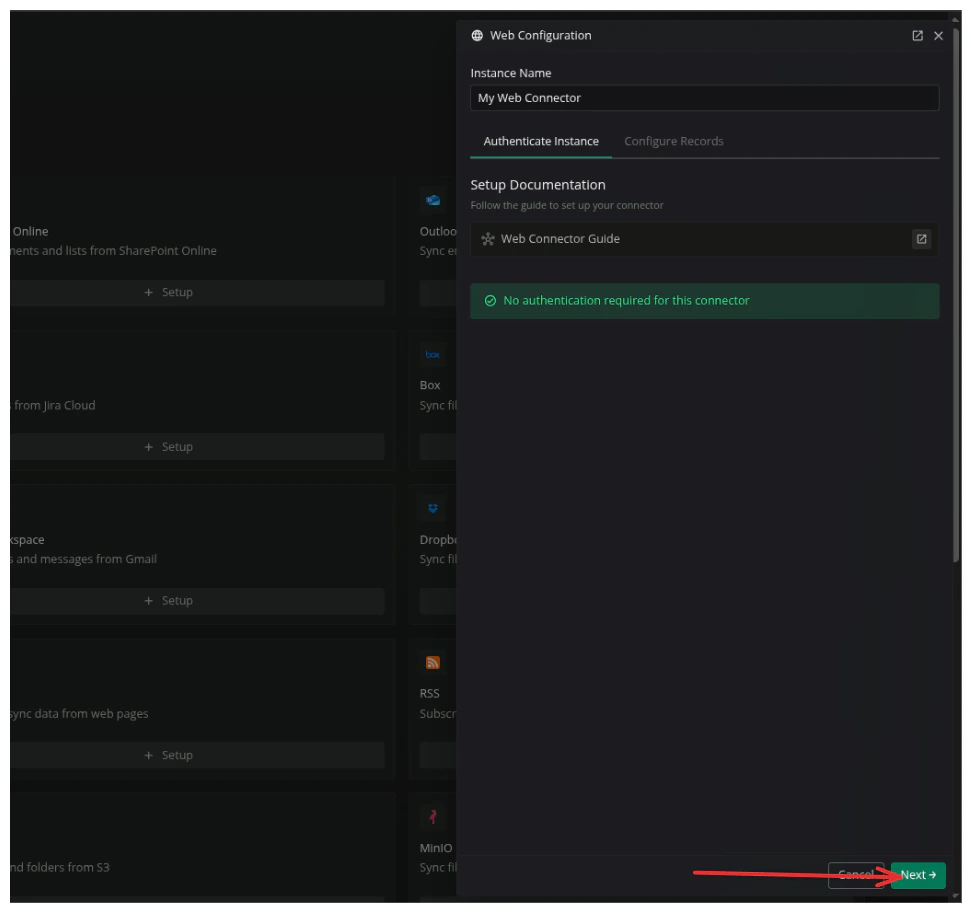

Step 2: Name the connector and continue
After you select the scope, enter a name for this Web connector (how it will appear in your workspace), then press Next.

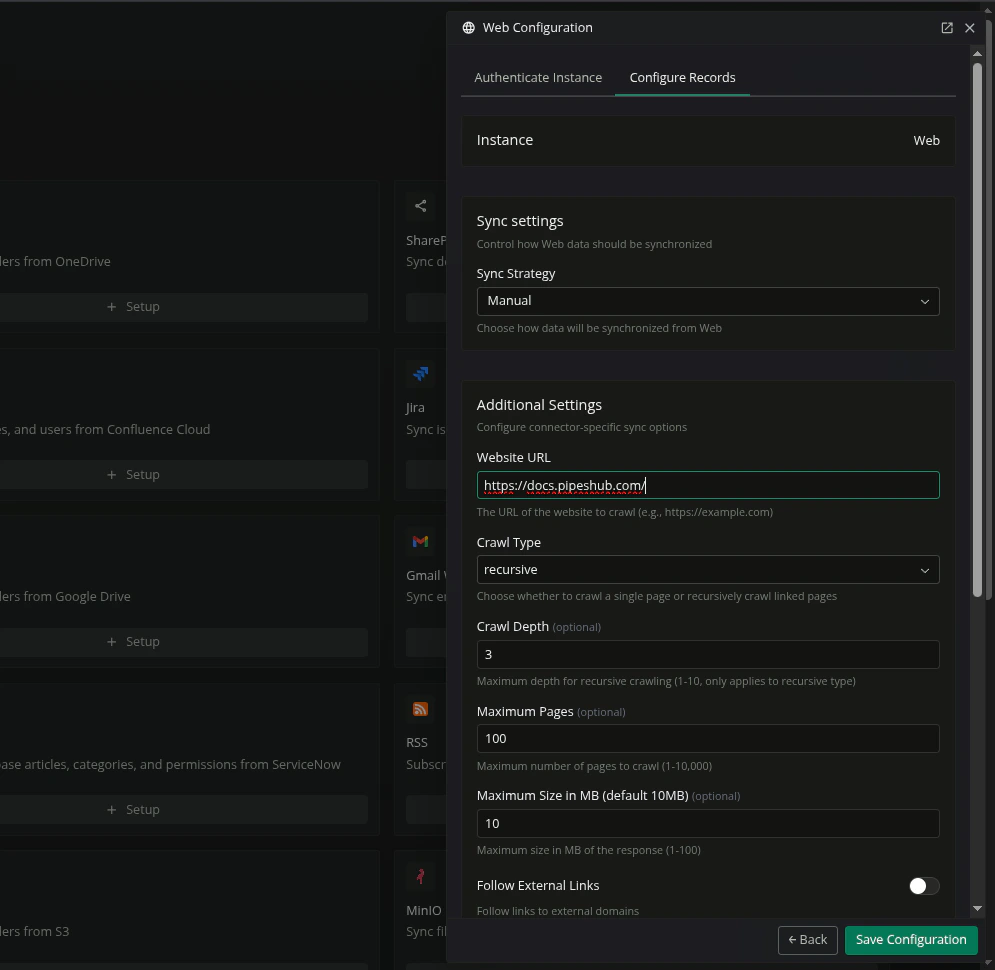

Step 3: Website URL
Enter the full Website URL to crawl (for examplehttps://docs.example.com/guides/). This value is required and becomes the connector’s root; it cannot be edited later—use a new connector if you need a different URL.

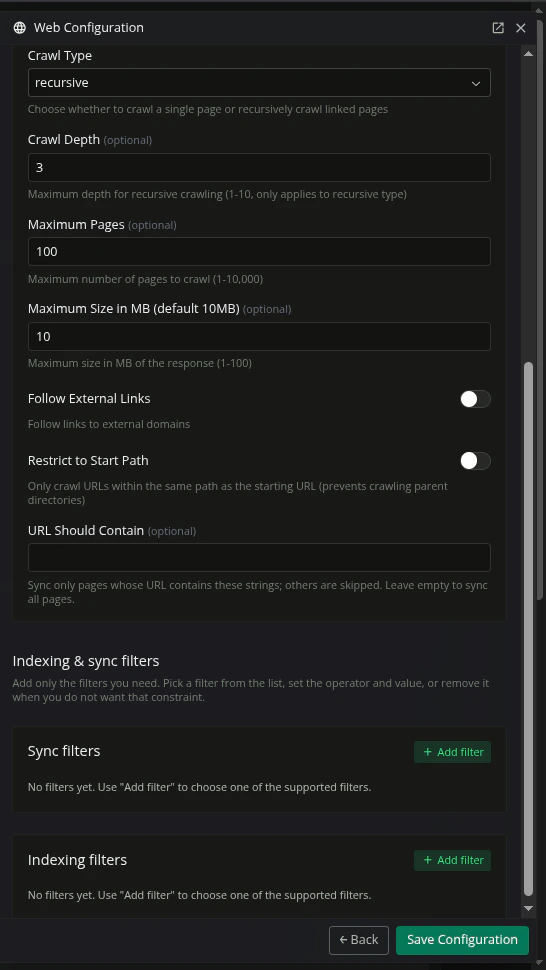

Step 4: Crawl type and limits
| Field | Description |
|---|---|
| Crawl type | Single — one URL only. Recursive — follow links extracted from each page’s HTML, subject to host, depth, path rules, and your caps. |
| Crawl depth | Maximum link depth to which pages are crawled. |
| Maximum pages | Upper bound on how many distinct URLs are processed during sync. |
| Maximum size (MB) | Largest HTTP body to download per URL; larger responses are skipped. |
| Follow external links | When enabled, links to other domains may be followed. When disabled, crawling stays on the same host as the start URL. Disabled by default. |
| Restrict to start path | When enabled, only URLs whose path stays under the starting path prefix are crawled (useful for subsites). If this is on, Follow external links is effectively off—you cannot combine path restriction with arbitrary external domains. |
| URL should contain | Optional tags: if any are set, only URLs containing at least one of the substrings (case-insensitive) are synced—except the configured start URL, which is always allowed. |
Step 5: Filters and indexing
- Enable manual sync filter: This allows you to have control over which records are indexed. It stops records from being automatically indexed. You can then go to All Records section to index the records manually.
- File extension filter: Restrict which file extensions are synced and skipped.
- Indexing toggles: Turn indexing on or off by category for webpages, images, and documents (and related options shown in connector settings) to control what downstream search indexing receives.
Step 6: Save configuration
After you finish configuring connector settings, click Save Configuration. Then toggle the connector to enable the crawling process.Connector Workflow
How Web connector works
How Web connector works
What the connector does
- Crawling: Starts from your configured Website URL. In recursive mode, discovers links from HTML, resolves them against the page URL, and visits URLs that pass validation (scheme, domain, path, extension, and optional URL substring filters).
- Fetching: Uses a multi-strategy HTTP pipeline (standard client, then browser-like TLS profiles and fallbacks where available) to improve success on sites that use bot detection or CDN challenges. Requests use realistic browser headers and respect a per-response maximum size cap.
- Content types: Treats HTML as web pages (title and cleaned text are derived for indexing). Also supports common documents (for example PDF, Office formats, CSV, JSON, XML, Markdown) and images (with processing for some formats in HTML context). Extension and indexing filters can narrow what is stored or sent for indexing.
- Structure: Builds a record group for the configured root URL and file records per URL, with parent links so paths appear hierarchically where applicable. URLs are normalized (for example deduplication, trailing-slash handling for “directory” pages) to avoid duplicate records.
- Sync: Supports scheduled sync (default daily) and connector filters (manual sync selection, file extensions, and indexing toggles in the product UI). Team vs personal scope controls who receives permissions on synced records.
Key limitations
- Public content only: Anything that requires login, cookies, or private APIs is out of scope unless the URL returns the content without authentication.
- Robots and rate limits: Respect your own policies and the target site’s terms of use. Heavy crawling can trigger 429 or blocks; the connector retries some transient errors with backoff but cannot guarantee access to every site.
- Starting URL is fixed: After creation, the root Website URL (and its domain) cannot be changed; create a new connector for a different site or domain.
FAQ
The site returns 403 or blocks the connector. What can I do?
The site returns 403 or blocks the connector. What can I do?
Many sites use bot protection (CDNs, CAPTCHAs, or geographic rules). The connector tries multiple fetch strategies, but no integration can guarantee access. Try a simpler entry URL, reduce crawl rate by lowering scope (URL filters, single-page mode), or host documentation on a domain that allows automated access. Sites that require interactive login cannot be indexed with this connector alone.
Why did my crawl stop at fewer pages than the maximum?
Why did my crawl stop at fewer pages than the maximum?
Common reasons include: maximum pages or depth reached, URL should contain filtering out branches, same-domain rules excluding external links, path restriction excluding parent or sibling paths, extension filters, size limits skipping large files, non-retryable HTTP errors (for example 404), or links pointing only to asset types the crawler does not follow as pages.
Can I change the website URL after setup?
Can I change the website URL after setup?
No. The root URL and domain are fixed for the lifetime of the connector instance. To index a different site or domain, create a new Web connector.
How are permissions applied?
How are permissions applied?
For team scope, records are readable at the organization level as configured by PipesHub. For personal scope, ownership-style permissions are tied to the user who created the connector. Exact behavior matches your workspace’s connector permission model.
