Zoom

Video conferencing, meetings, and recording links

✅ Ready📖 Documentation Available

Overview

Zoom is the video conferencing and online meeting platform used by teams for calls, webinars, and collaborative sessions. The Zoom connector brings your organization’s meeting history — who attended, recording links, and AI Companion transcripts — into PipesHub, so everything said in a meeting is searchable alongside your other knowledge sources.

What Gets Synced

EntityDescription
UsersActive Zoom users in the account
MeetingsMeeting subject, start/end times, host, alt-hosts, settings
ParticipantsAttendees per meeting
Cloud Recording LinkZoom share URL to the recording (when available) — recording video/audio files are not downloaded
AI Companion TranscriptsTimestamped transcripts from Zoom AI Companion
PermissionsHost = Owner; alt-hosts, participants, invitees = Read

Configuration Guide

Prerequisite: Admin-managed app + admin access

The Zoom connector requires an Admin-managed OAuth app (not User-managed) and admin access to the Zoom account. One admin authorization covers all users — unlike the Zoom Toolset, which is User-managed and authorized per user.

Step 1: Create a Zoom General App

Zoom replaced the standalone “OAuth App” type with the General App type, which supports the same 3-legged OAuth flow.
  1. Sign in to the Zoom App Marketplace with an account that has admin privileges.
  2. Click Develop in the top-right corner, then Build App.
  3. Select General App and click Create.
Build a General App on Zoom Marketplace

Step 2: Choose App Type — Admin-managed

In the app creation dialog, choose:
FieldValue
Select how the app is managedAdmin-managed app
Would you like to publish this app on Zoom App Marketplace?No (keep private)
Select Admin-managed app (not User-managed)
The choice between Admin-managed and User-managed is permanent — it cannot be changed after the app is created. Admin-managed is required because the connector uses admin-scoped Report APIs to sync meeting data for all users.

Step 3: Get the Redirect URL from PipesHub

Before filling in the Zoom form, copy the Redirect URL from PipesHub so the values match exactly.
  1. In PipesHub, go to Workspace SettingsConnectors, find Zoom, and click + Setup for a new instance.
  2. The connector panel opens as a right-side drawer. On the Authenticate Instance tab, copy the Redirect URL.

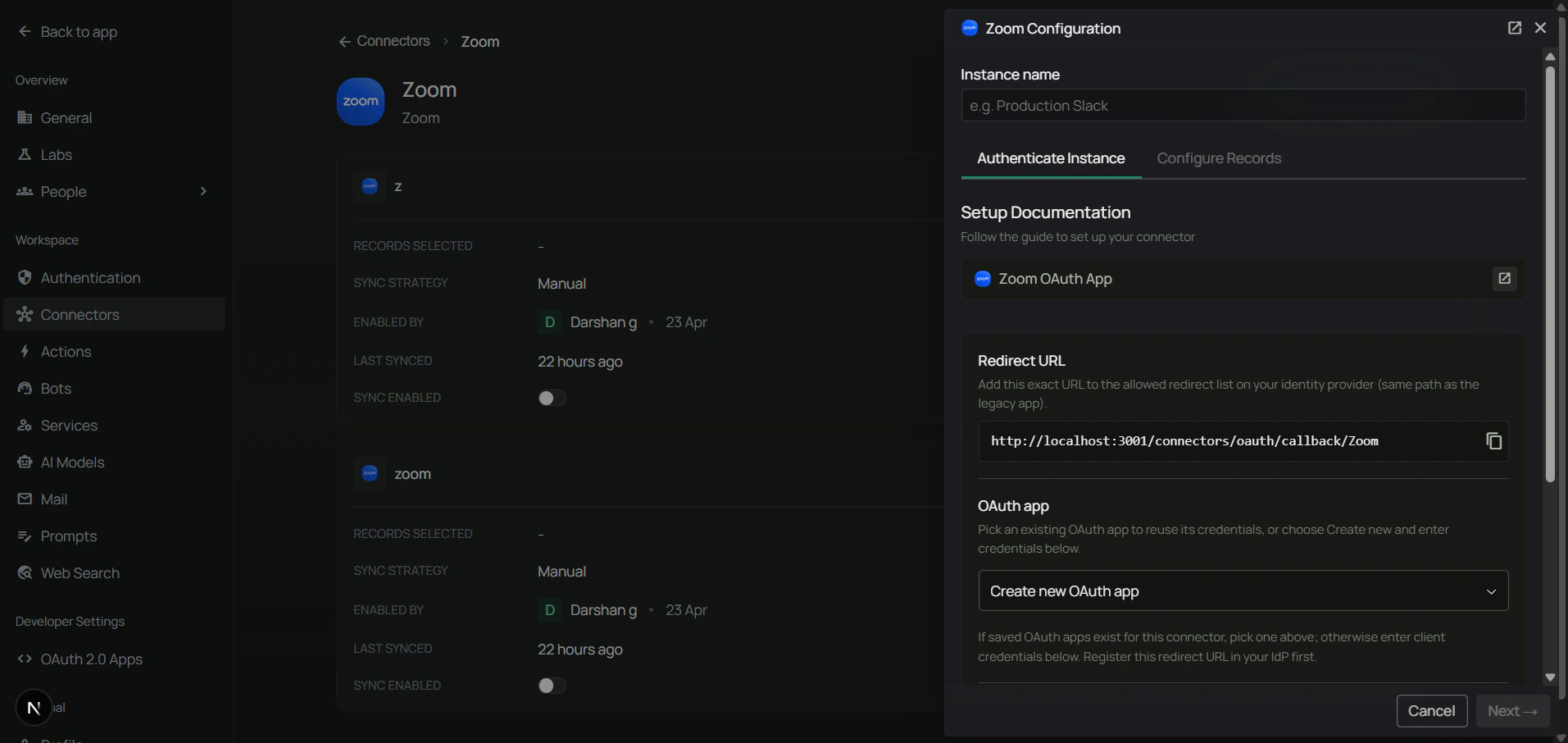

PipesHub Zoom Authenticate Instance tab — copy the Redirect URL

Step 4: Configure OAuth information in Zoom

In the Zoom app builder, open Basic Information and scroll to OAuth Information:
  1. Paste the PipesHub Redirect URL into the OAuth Redirect URL field.
  2. Add the same URL to the OAuth Allow List below.
  3. Click Save.

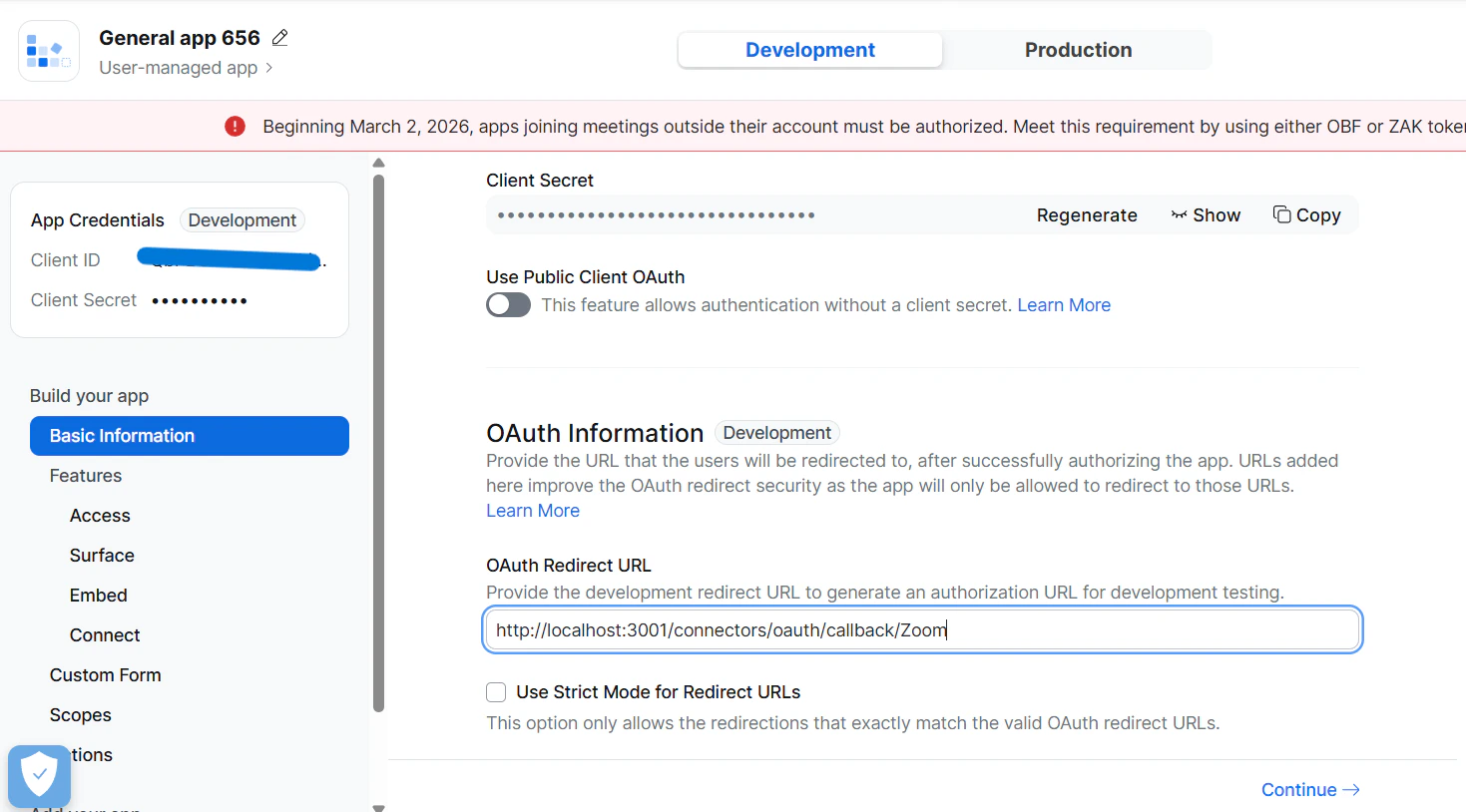

Configure OAuth Redirect URL and Allow List
Zoom allows only one primary OAuth Redirect URL per app, and the URL must match exactly (protocol + host + path). HTTPS is required except for http://localhost during development.

Step 5: Add required scopes

Open the Scopes section in the app builder and add the following admin-scoped scopes:
ScopePurpose
user:read:list_users:adminList all users in the Zoom account
report:read:user:adminRead per-user activity reports (meeting history)
report:read:list_meeting_participants:adminList meeting participants via Report API
meeting:read:meeting:adminRead meeting details (subject, settings, alt-hosts)
cloud_recording:read:meeting_transcript:adminRead AI Companion meeting transcripts
cloud_recording:read:list_recording_files:adminList cloud recording files for each meeting

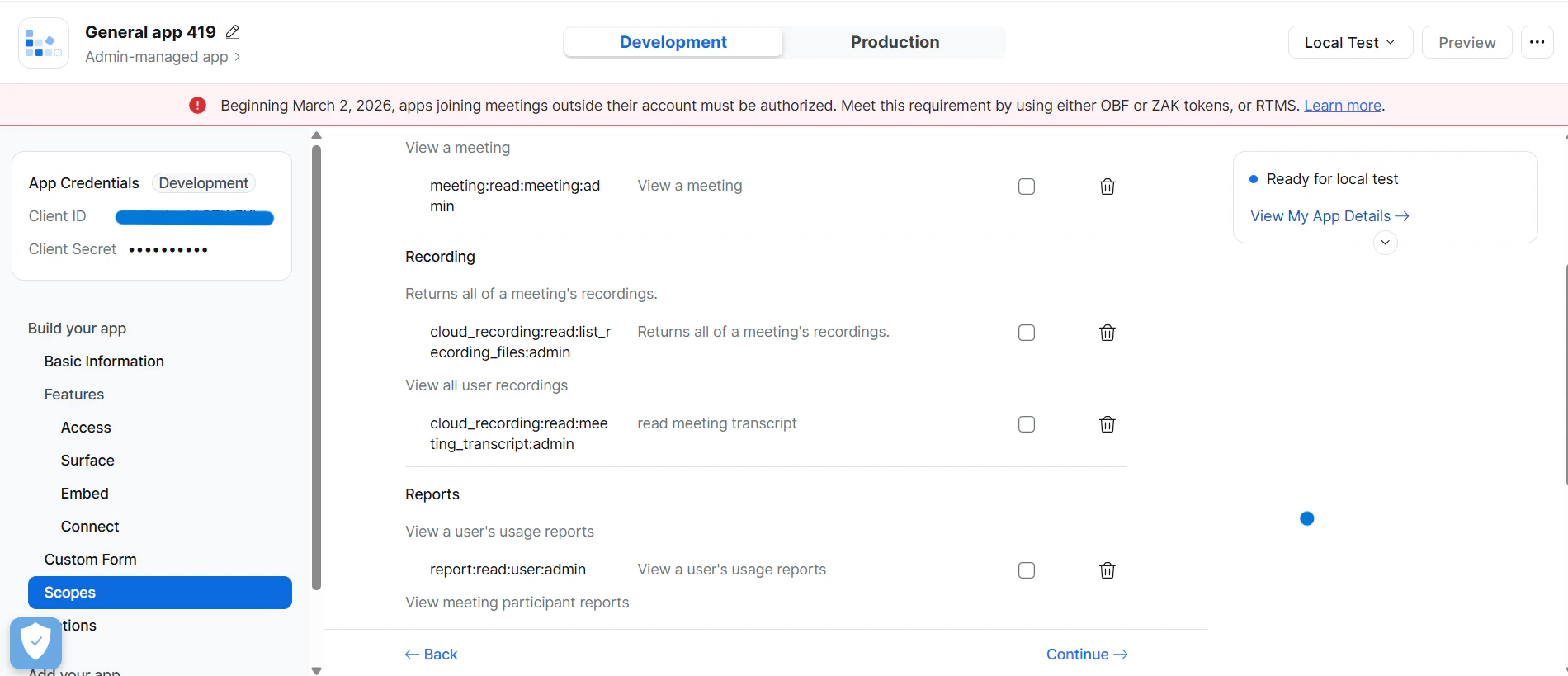

Add the six admin scopes to the Zoom app
All scopes are admin-scoped (*:admin). Only Admin-managed apps can request these; User-managed apps cannot. If you chose User-managed in Step 2, you will not see these scopes in the list — delete the app and create a new Admin-managed one.

Step 6: Copy Client ID and Client Secret

  1. Go to Basic Information → App Credentials in the Zoom app builder.
  2. Copy:
    • Client ID — used as Client ID in PipesHub.
    • Client Secret — used as Client Secret in PipesHub.

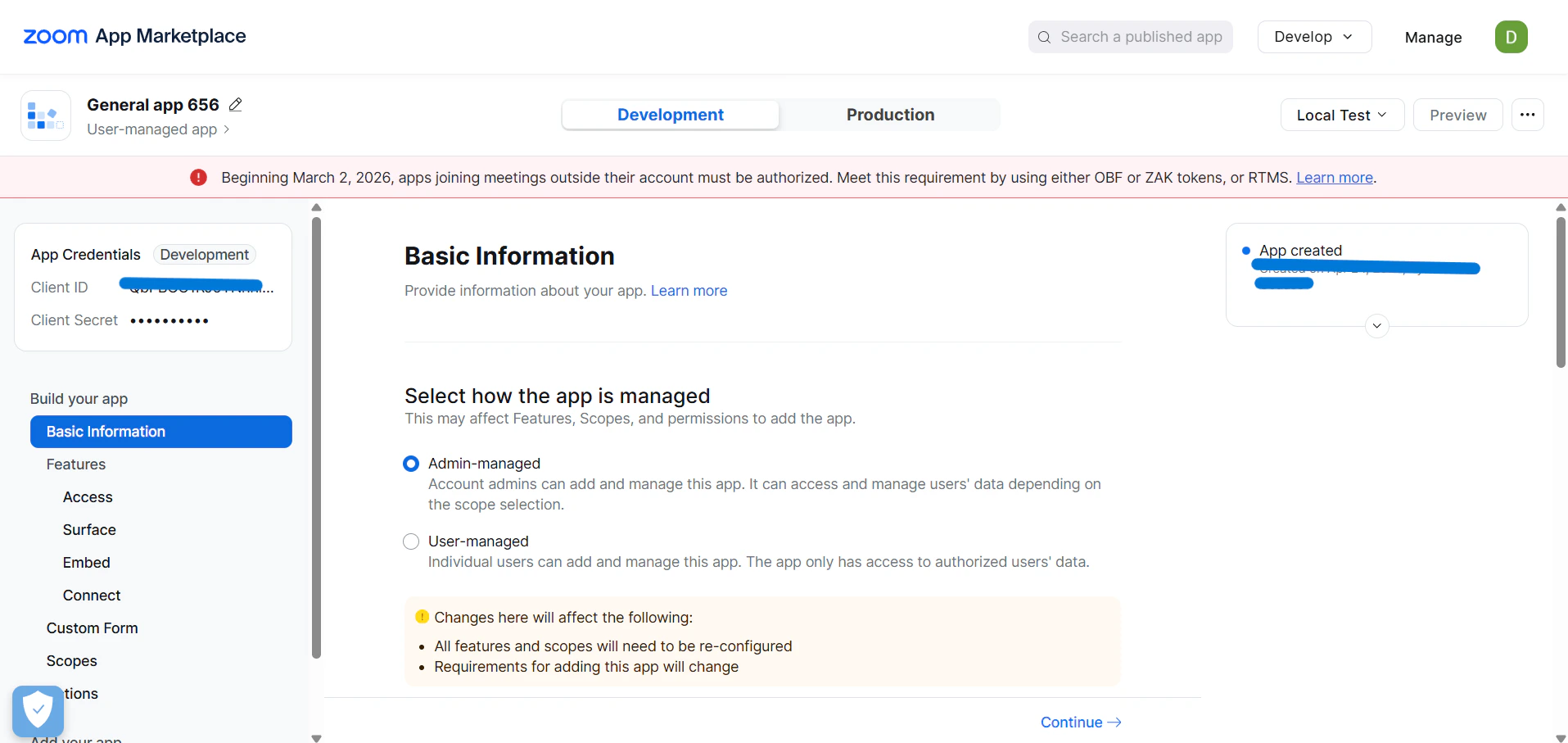

Copy Zoom Client ID and Client Secret
Store the Client Secret securely. It can be regenerated if needed, but you’ll have to update your PipesHub configuration with the new value and re-authorize.

Step 7: Authenticate Instance tab — enter credentials

Return to the PipesHub connector drawer. On the Authenticate Instance tab:
  1. Confirm the Redirect URL matches the OAuth Redirect URL you saved in Zoom in Step 4.
  2. Enter:
    • Client ID — from Step 6
    • Client Secret — from Step 6
  3. Click Next to move to the Authorize tab.

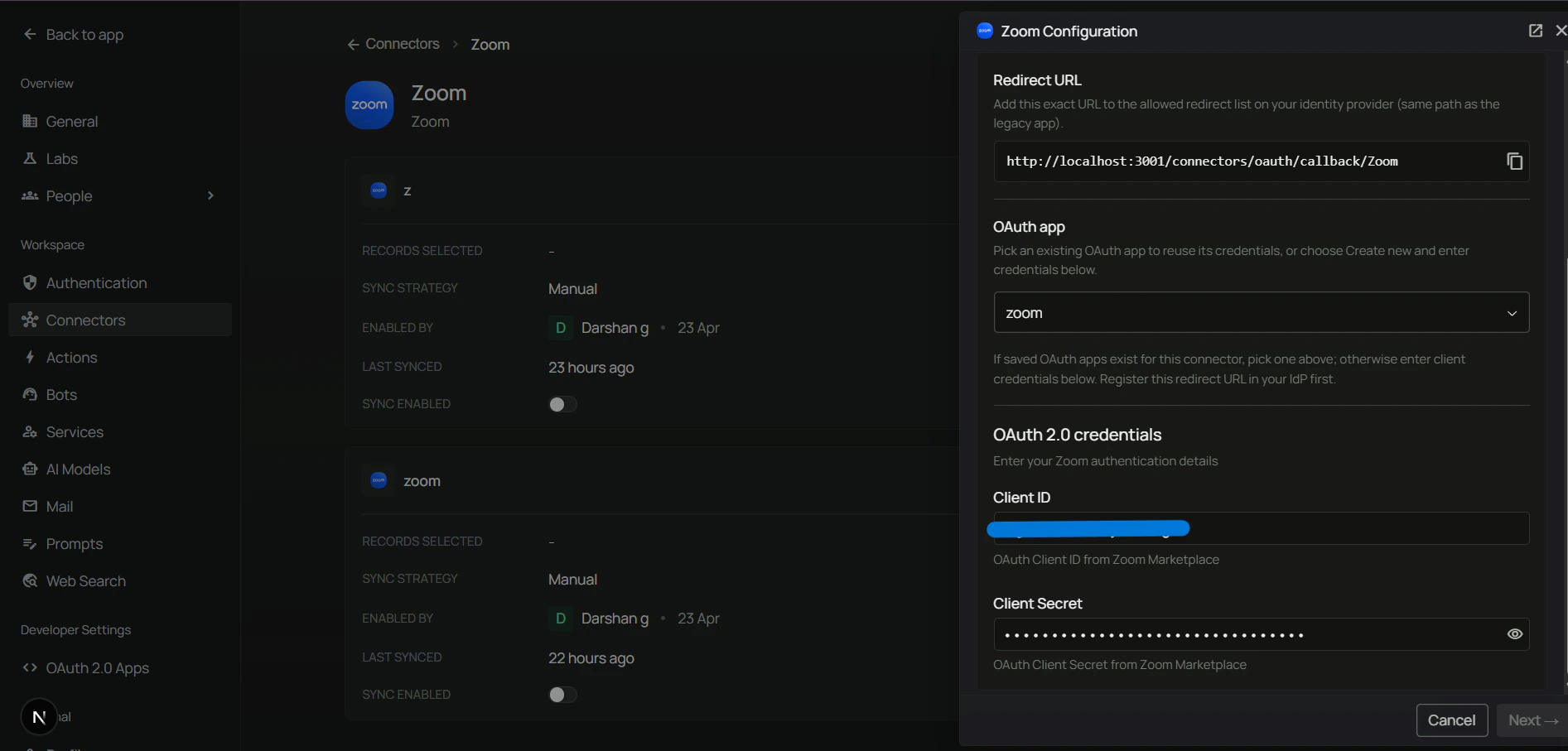

Authenticate Instance tab — enter Client ID and Client Secret

Step 8: Authorize tab — complete the OAuth flow

On the Authorize tab, all the OAuth authorization work happens. The tab shows an Authenticate button to kick off the OAuth handshake.

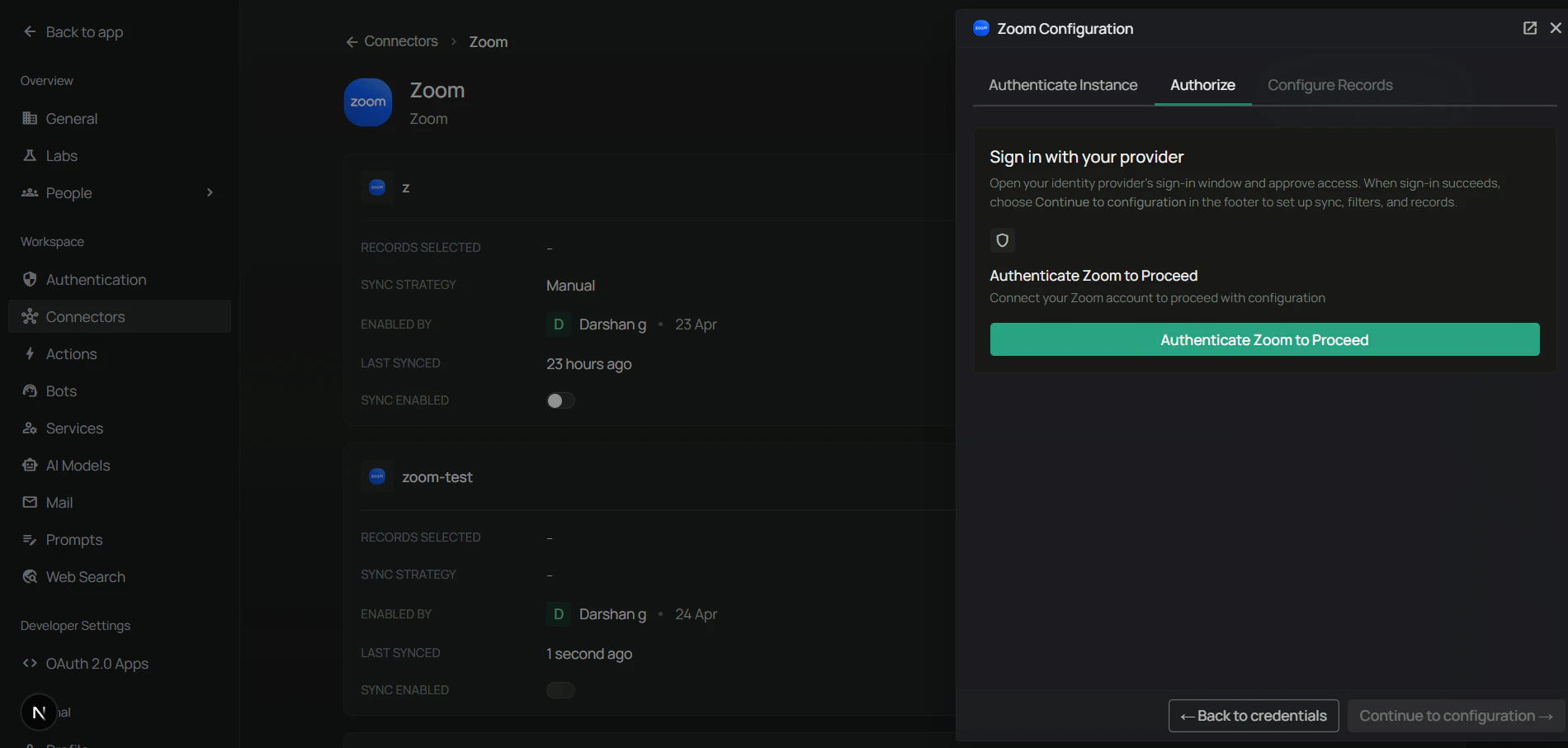

PipesHub Authorize tab with the Authenticate button
  1. Click Authenticate to start the OAuth flow. A popup opens to Zoom’s authorization page.
  2. Sign in as a Zoom admin (Admin-managed apps can only be authorized by admins).
  3. Review the requested scopes and click Allow.
Zoom admin OAuth consent — review scopes and Allow
If the consent screen shows “Only admins can install this app” or blocks the install, confirm the signed-in Zoom user has admin privileges on the account.
  1. The popup closes and returns you to PipesHub. The connector tile shows an Authenticated badge with a Reauthenticate option.
  2. Click Next to move to the Configure Records tab.

Step 9: Configure Records tab — sync settings and indexing

On the Configure Records tab, control how the connector syncs and what gets indexed. Sync settings — configure your synchronization preferences first:
  1. Sync StrategyScheduled or Manual.
  2. Sync Interval — how often to sync (default: 60 minutes).

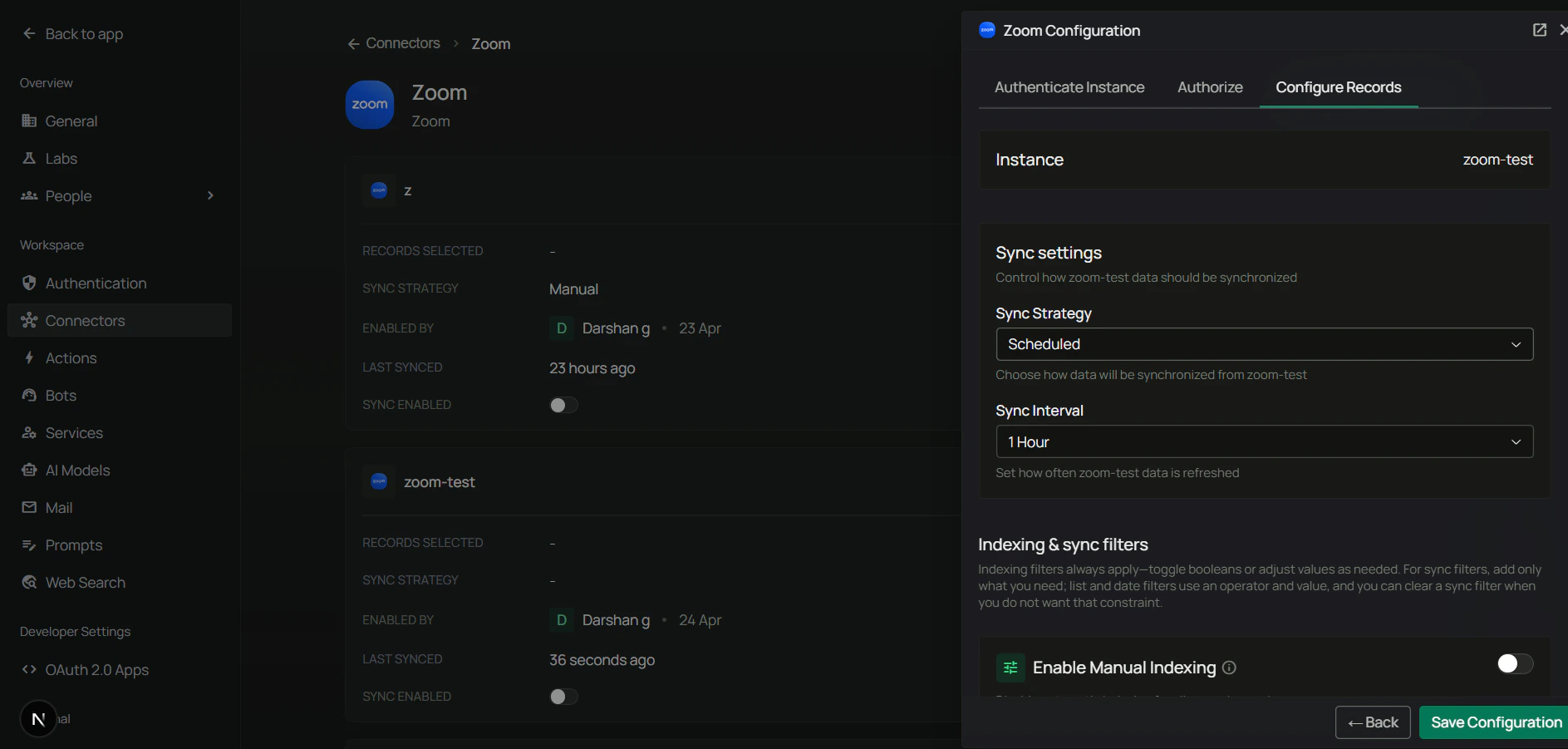

Configure Sync Strategy and Interval
Scheduled sync runs automatically at the specified intervals. Manual sync requires you to trigger synchronization on-demand.
Indexing filters — control what synced data gets processed for AI search.

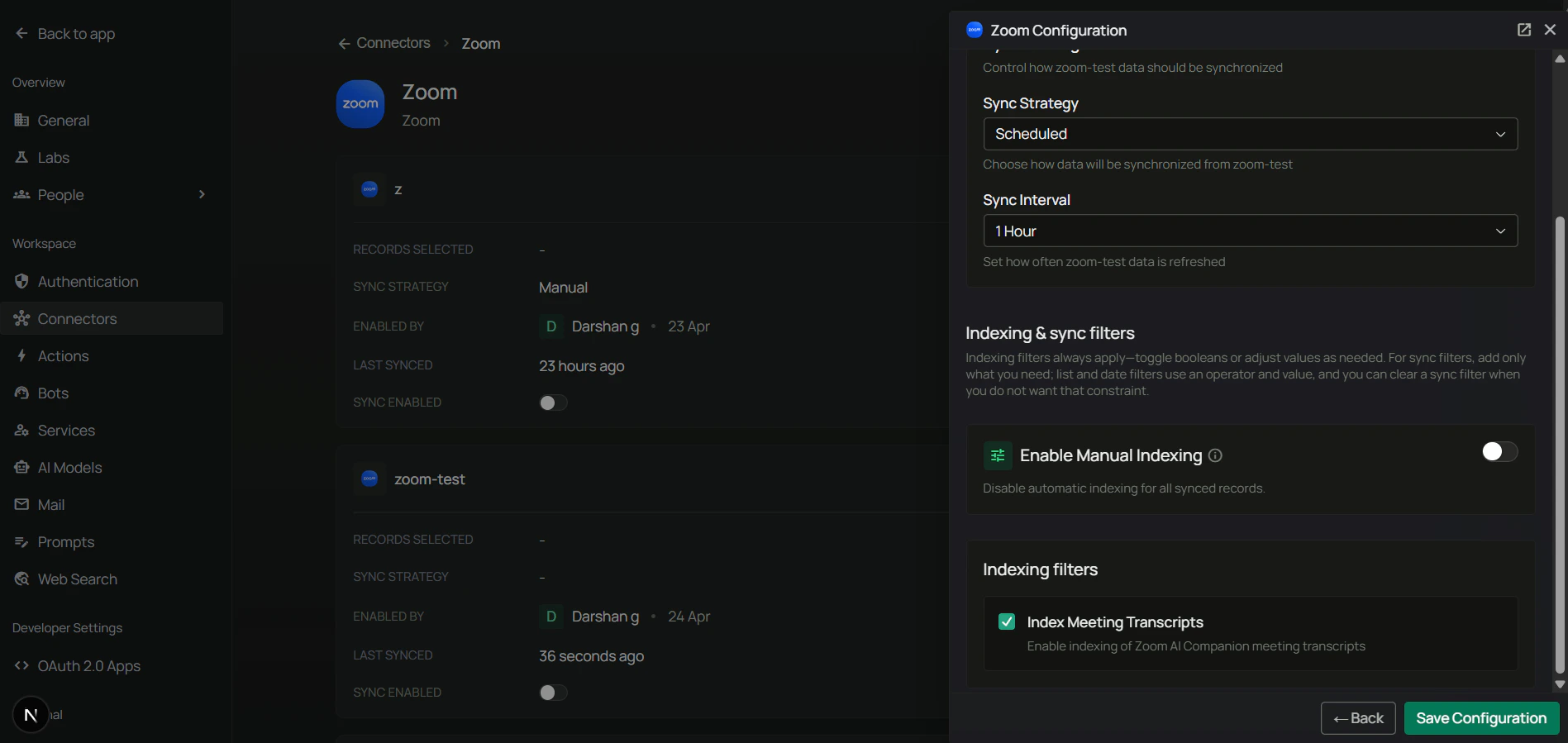

Configure Records tab — Index Meeting Transcripts toggle
  • Index Meeting Transcripts (default: enabled) — include AI Companion meeting transcripts in search. Disable if you want to sync meetings without indexing transcript content.
Click Save to save your configuration. PipesHub confirms the instance is ready with a final dialog — “Instance is configured and ready to sync” — offering two choices: I’ll do it later or Start syncing now.

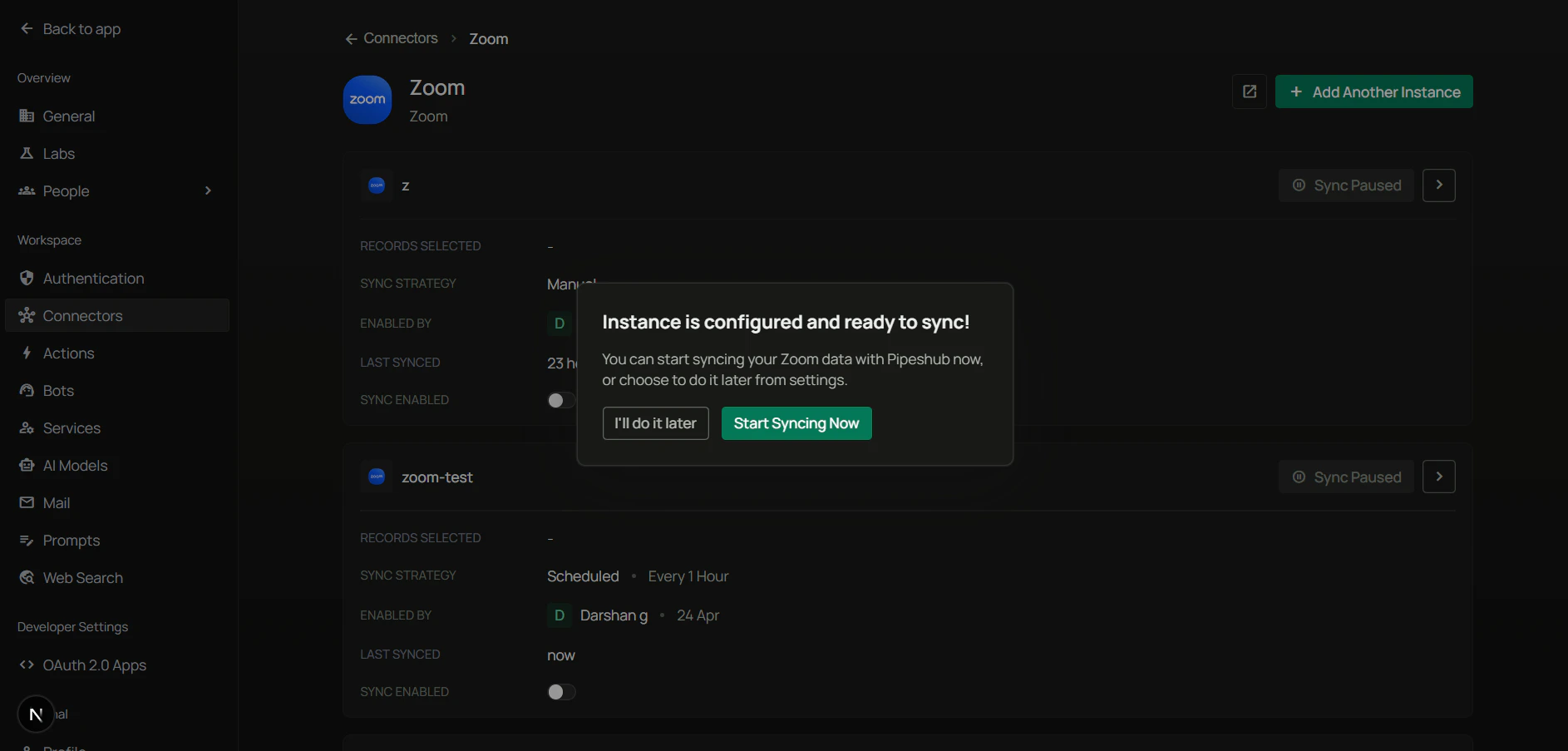

Instance is configured and ready to sync — I'll do it later or Start syncing now
Choose Start syncing now to kick off the initial sync immediately, or I’ll do it later to enable the connector without an immediate sync. Monitor the Indexing Progress to track sync completion.

Supported Features

The Zoom connector syncs the following from your Zoom account:
  • Users — all active users in the account (used for host identity)
  • Meetings — details, subject, timing, alt-hosts, settings
  • Participants — attendance per meeting via the Report API
  • Cloud Recording Link — Zoom share URL to the recording (when available); recording files are not downloaded
  • AI Companion Transcripts — timestamped transcripts streamed on demand
  • Permissions — host = Owner; alt-hosts, participants, invitees = Read

Troubleshooting

Common issues

Invalid client credentials error:
  • Verify Client ID and Client Secret are correct — no extra spaces
  • Check that the OAuth app is still active in the Zoom Marketplace
  • Regenerate the secret if necessary and update PipesHub
OAuth Redirect URL mismatch:
  • The Redirect URL in PipesHub must match the OAuth Redirect URL saved in Zoom exactly — protocol, host, path, and trailing slash
  • Also ensure the same URL is on the OAuth Allow List in Zoom
Scopes missing on the consent screen:
  • If admin scopes are not shown when authorizing, the app was likely created as User-managed instead of Admin-managed. Delete the app and create a new Admin-managed one.
  • Confirm all six scopes are added in the Scopes section of the app builder before authorizing.
Authorization blocked — “Only admins can install this app”:
  • Only a Zoom admin can authorize an Admin-managed app. Sign out and sign back in as an admin, then retry Authenticate on the Authorize tab.
No meetings appear after sync:
  • Confirm the authorizing admin can see the account’s users (e.g., via Zoom Admin → User Management)
  • If users show up but no meetings, check that Report API access is enabled for your plan — Report APIs require Pro or higher
  • Initial sync only covers the last 180 days; older meetings are intentionally excluded
Transcripts missing:
  • Only AI Companion transcripts are indexed. Meetings without AI Companion enabled will not have a transcript.
  • Verify cloud_recording:read:meeting_transcript:admin is granted
  • If transcripts fail with Zoom error 3322, the meeting simply has no transcript — this is expected, not an error
Sync stuck or slow:
  • The Report API GET /v2/report/meetings/{id}/participants is a Heavy-rate endpoint (~10–20 req/s). For accounts with thousands of meetings, the initial 180-day backfill can take an hour or more.
  • The connector processes meetings with a concurrency cap to stay under rate limits — this is intentional.
If you change the app’s Client Secret, scopes, or Redirect URL in the Zoom Marketplace, you must update the configuration in PipesHub and re-authorize on the Authorize tab.

Data Sync Behavior

Sync overview

Every sync runs in this order:
  1. Fetch active usersGET /v2/users?status=active lists users in the account.
  2. Create user groups — one USER_GROUP per host; permissions anchored to the host email.
  3. Per-user meeting history — for each user, GET /v2/report/users/{userId}/meetings returns meetings in 30-day chunks, driven by a per-user checkpoint (zoom_report_last_sync/{user_id}).
  4. Per-meeting enrichment — for each meeting:
    • GET /v2/meetings/{meetingId} — meeting detail
    • GET /v2/meetings/{meetingId}/recordings — recording share URL only (silently skipped if the meeting has no recording)
    • GET /v2/report/meetings/{meetingId}/participants — attendee list
    • GET /v2/meetings/{meetingId}/transcript — AI Companion transcript (if enabled)
  5. Build permissions — host → Owner; alt-hosts / participants / invitees → Read.
  6. Persist records — meeting records and permissions are written per chunk.

Full sync vs incremental sync

  • First sync runs from max(user.created_at, today - 180 days) forward.
  • Subsequent syncs start from the per-user checkpoint minus one day (safety overlap) and advance to today, in 30-day chunks.
  • Lookback cap: 180 days. Older meetings are never synced.
  • Chunk size: 30 days per API call (Zoom Report API constraint).

Rate-limit awareness

  • GET /v2/report/meetings/{id}/participants is Zoom’s rate-limit bottleneck (Heavy-rate tier, ~10–20 req/s).
  • The connector processes meetings with a concurrency cap to stay safely under the limit.
  • Throttled responses trigger exponential backoff; long-running syncs will continue across scheduled intervals.

Transcripts

  • Transcripts are not pre-cached — they are fetched live when the record is opened in PipesHub.
  • Zoom error 3322 means the meeting has no transcript (expected for meetings without AI Companion).
  • Zoom errors 3001/3301 mean the meeting/transcript expired — silently skipped.

FAQ

AspectZoom ConnectorZoom Toolset
PurposeSync and index Zoom meetings, participants, recordings, and transcripts for searchEnable agents to schedule meetings, update recurring series, fetch transcripts on demand
Data FlowOne-way (import data into PipesHub)Two-way (read and write via API)
Zoom app typeAdmin-managed (single admin authorization)User-managed (each user authorizes individually)
ScopesAdmin-scoped (*:admin)User-scoped
When to UseQuery/search past meetings, find transcriptsBook meetings, cancel occurrences, pull transcripts in-conversation
Example: Use Zoom Connector to search past meeting transcripts across your organization. Use Zoom Toolset to let agents schedule meetings, reschedule a specific occurrence, or pull a transcript on demand.
The connector syncs meeting history for every user in the account, not just the authorizing user. That requires admin-scoped APIs — specifically:
  • List all users in the account → user:read:list_users:admin
  • Read meeting history per user via the Report API → report:read:user:admin
  • Fetch meeting participantsreport:read:list_meeting_participants:admin
  • Meeting details and recording share URLs across the account → meeting:read:meeting:admin, cloud_recording:read:list_recording_files:admin, cloud_recording:read:meeting_transcript:admin
Admin scopes (*:admin) are only available to Admin-managed apps. A User-managed app cannot request them and would only return data the authorizing user personally hosted — which defeats the purpose of an organization-wide knowledge connector. Admin-managed also means a single authorization covers the entire account, so users don’t need to individually connect their Zoom to PipesHub.
