OpenAI Embeddings Configuration

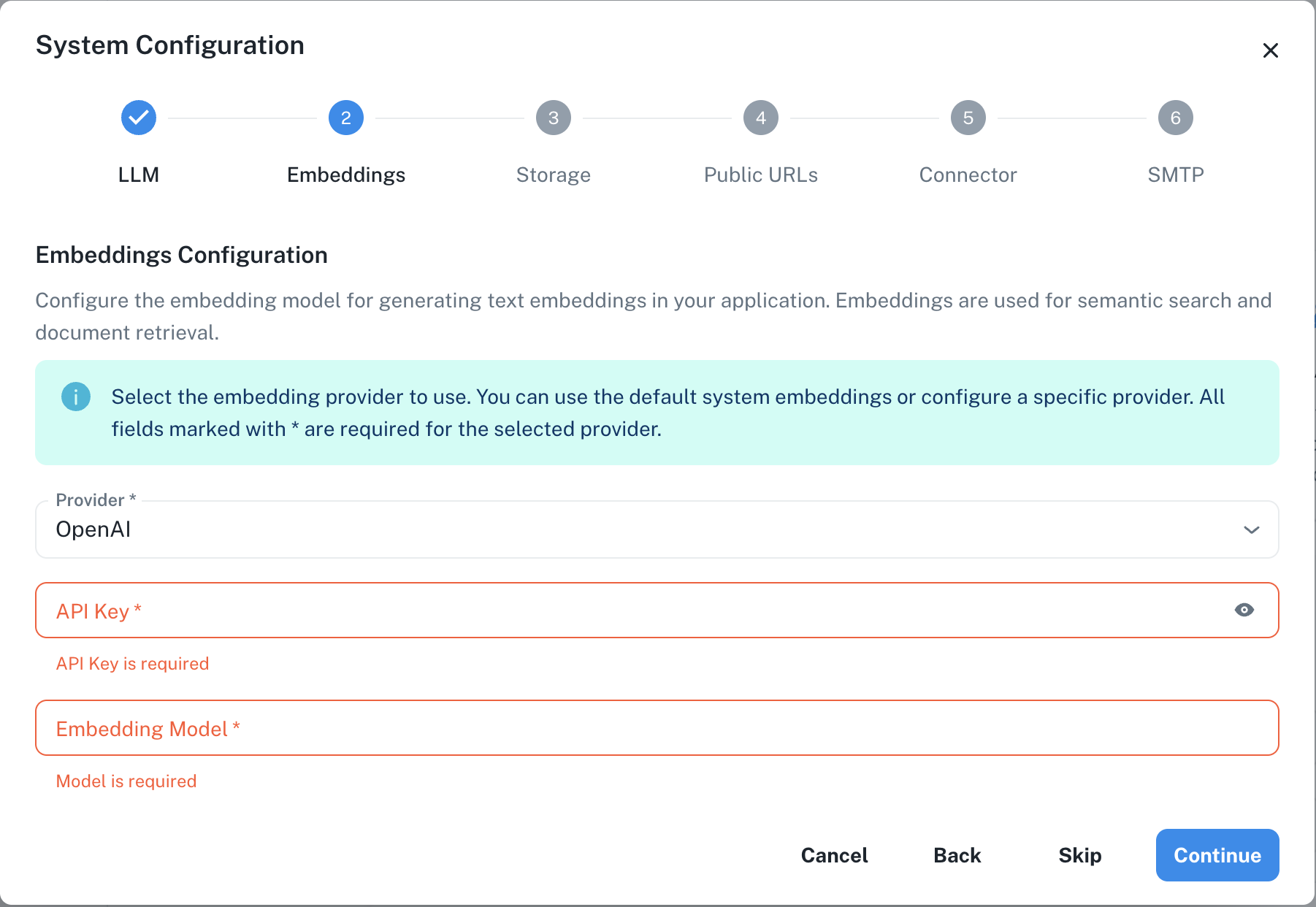

The OpenAI embeddings configuration screen in PipesHub where you’ll enter your API Key and Model Name PipesHub allows you to integrate with OpenAI’s embedding models to enable vector search, semantic similarity, and document retrieval in your workspace.

​

Required Fields

​

API Key *

The API Key is required to authenticate your requests to OpenAI’s embedding services. How to obtain an API Key:

1. Log in to your OpenAI account
2. Navigate to the API section
3. Create a new secret key
4. Copy the key immediately (it will only be shown once)

Security Note: Your API key should be kept secure and never shared publicly. PipesHub securely stores your API key and uses it only for authenticating requests to OpenAI.

​

Model Name *

The Model Name field defines which OpenAI embedding model you want to use with PipesHub. Available OpenAI embedding models:

• text-embedding-3-small - Cost-effective model with excellent performance for most use cases
• text-embedding-3-large - Higher dimensional embeddings for tasks requiring maximum accuracy

How to choose a model:

• For most applications and cost efficiency, select text-embedding-3-small
• For specialised applications requiring maximum performance, select text-embedding-3-large
• Check OpenAI’s embedding documentation for the most up-to-date options

​

Optional Fields

​

Output Dimensions

Override the size of the embedding vectors produced by the model. Supported by the text-embedding-3-* model series. When to set this:

• To reduce storage costs by producing smaller vectors
• When your vector database requires a specific dimension size

Note: Leave blank to use the model’s default dimensions. Setting this on models that do not support a dimensions parameter will cause an error.

​

Configuration Steps

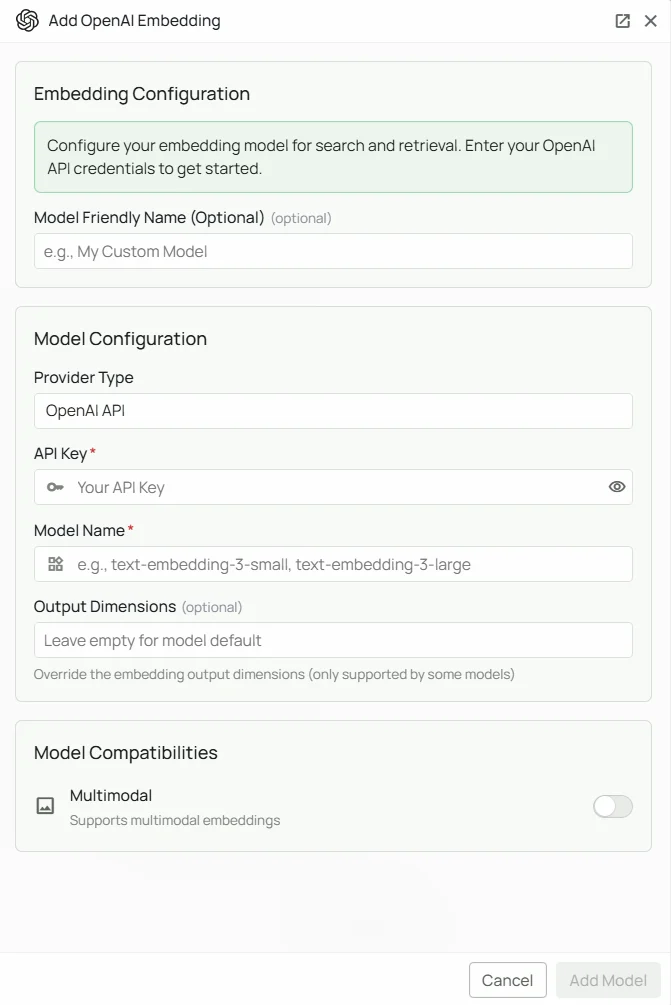

As shown in the image above:

1. Click Configure on the OpenAI provider card
2. Enter your OpenAI API Key in the designated field (marked with *)
3. Specify your desired Model Name (marked with *)
4. (Optional) Set Output Dimensions if you need a non-default vector size
5. Click Add Model to save and validate your credentials

Both the API Key and Model Name are required fields to successfully configure OpenAI embedding integration.

​

Usage Considerations

• API usage will count against your OpenAI account’s quota and billing
• Different models have different pricing — check OpenAI’s pricing page for details
• Consider storage requirements based on the embedding dimensions you select

​

Troubleshooting

• If you encounter authentication errors, verify your API key is correct and has not expired
• Ensure your OpenAI account has billing set up
• Check that the model name is spelled correctly
• Only set Output Dimensions for models that support the dimensions parameter (text-embedding-3-small and text-embedding-3-large)

For additional support, refer to the OpenAI Embeddings documentation or contact PipesHub support.
