Dropbox Logo

​
Dropbox Teams

Cloud storage and file sharing

✅ Ready📚 Documentation Available

​
Overview

Dropbox is a popular cloud storage service. Its main purpose is to let you store your files online, sync them across all your devices, and easily share them with other people.

​
Configuration Guide

​
User & Teams Client

User Client is designed to interact with an individual user’s Dropbox account. Think of this as managing a personal workspace. These endpoints can also be called via the Team client, but require specifying the user to act on behalf of.Team Client is specifically for Dropbox Business or Enterprise accounts. They include endpoints that are used to manage an entire team or organization’s Dropbox environment from an administrative perspective.

​
APIs Documentation

​
Concept of Cursor

A cursor is a short string that acts like a bookmark for keeping track of changes in a folder.When you first list the contents of a folder using an endpoint like /files/list_folder, the API response includes a cursor. This cursor represents the exact state of that folder at that moment.Instead of re-downloading the entire list of files to check for changes, you can simply pass that cursor to the /files/list_folder/continue endpoint. The API will then return only the files and folders that have been added, modified, or deleted since you last received that cursor. This makes syncing changes highly efficient as you only process the differences.
This guide will walk you through the process of creating a Dropbox application and connecting it to PipesHub to fetch your files and folders.

​
Dropbox Team Account

​
Step 1: Create a Dropbox App

  1. Navigate to the Dropbox App Console and sign in with your Dropbox credentials.
  2. Click the Create app button on the top right.
Dropbox
  1. Configure your new app with the following settings:
    • Choose an API: Select Scoped access.
    • Type of access: Select Full Dropbox.
    • Name your app: Enter a unique name for your application, for example, “Pipeshub Connector”.
  2. Click Create app. You will be redirected to your new app’s settings page.

​
Step 2: Configure Permissions and Redirect URI

  1. On your app’s page, navigate to the Permissions tab.
Dropbox
  1. Under Individual Scopes, check the boxes for the permissions PipesHub needs to access your data:
    • account_info.read
    • files.content.read
    • files.metadata.read
    • file_requests.read
    • sharing.read
    • sharing.write
  2. Under Team Scopes, check the boxes:
    • groups.read
    • members.read
    • team_data.member
    • team_data.team_space
    • team_info.read
    • events.read

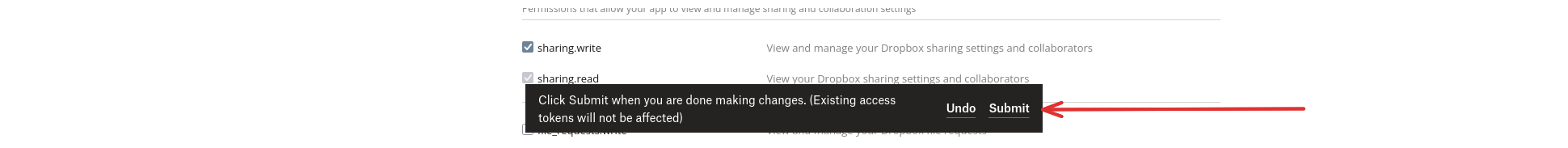

  3. Click Submit at the bottom of the page to save your changes.
Dropbox
  1. Now, go to the Settings tab.
  2. You also need to enable additional Development users.
  3. Find the OAuth 2 section and add the following URL to the Redirect URIs field (where is your PipesHub instance URL):
http://{your_pipeshub_base_url}/connectors/oauth/callback/Dropbox
  1. Click Add to save the URI.
Dropbox

​
Step 3: Copy App Key and Secret

  1. While still in the Settings tab, locate the App key and App secret.
  2. Click the Show button to reveal your App secret.
  3. Copy both the App key and the App secret. You will need these for the next step.

​
Step 1: Configure Connection

  1. Navigate to Workspace Settings > Under Workspace section in sidebar > Connectors in your application.
Go to Workspace Settings

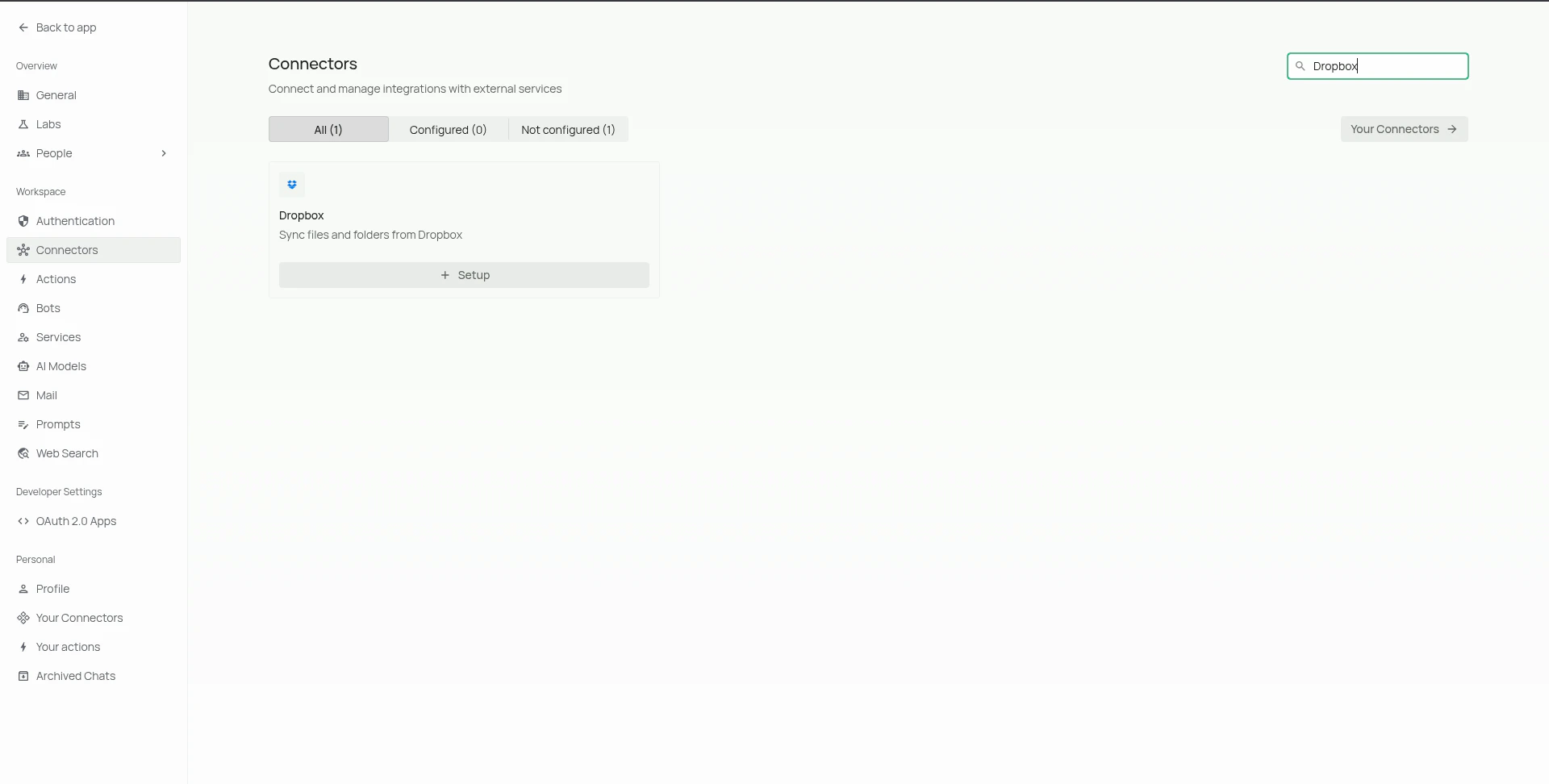

  1. Search for the Dropbox connector and click on Setup to configure a connector instance.
Search for Dropbox connector

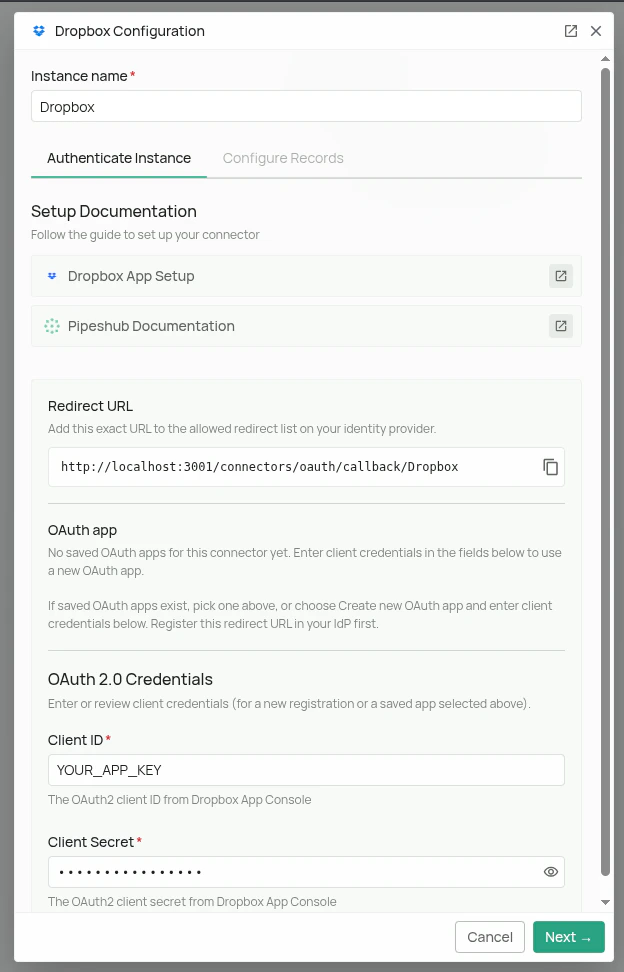

  1. In the configuration dialog that opens:
    • Enter an Instance Name for your connector (e.g., “Dropbox Teams”)
    • Enter the App key from your Dropbox App Console
    • Enter the App secret from your Dropbox App Console
    • Click on the Next button to save the configuration and move to Authorize page.
    Dropbox Configuration

​
Step 2: Authorize Dropbox

  1. In the Authorize page that opens:
    • Click on Authenticate Dropbox to Proceed button

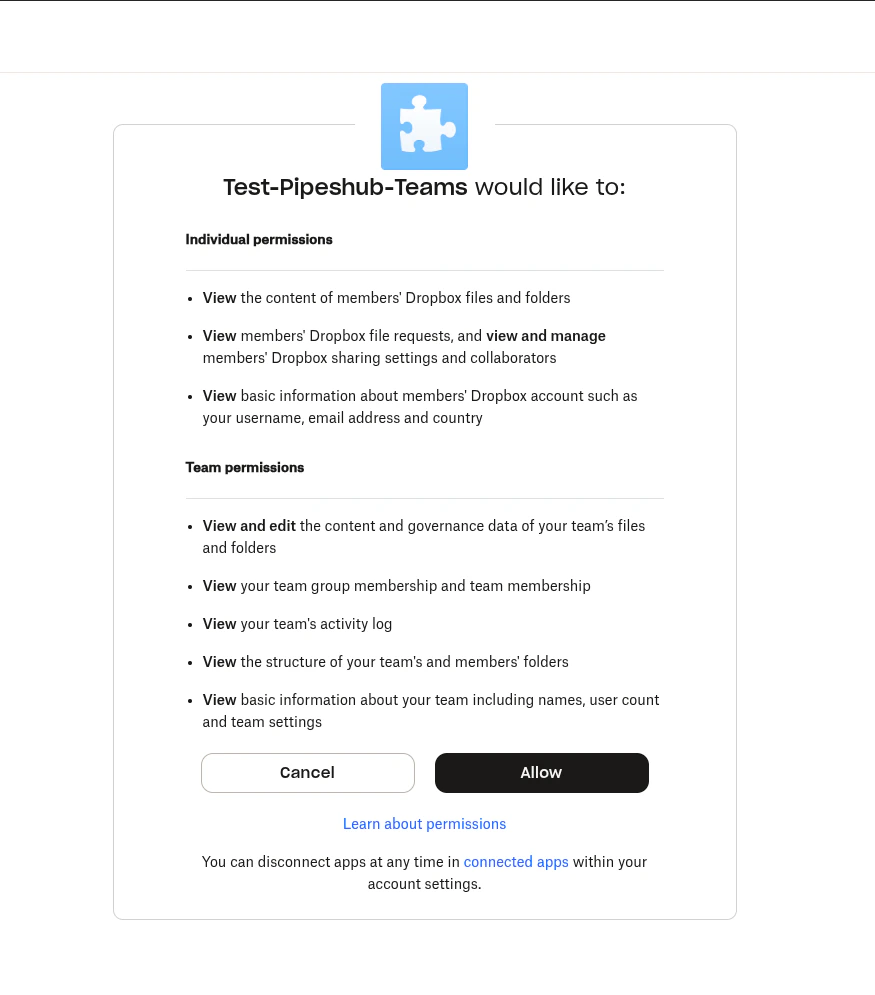

    • You will be redirected to Dropbox’s consent screen where you need to sign in and grant permission for Dropbox and related document access
    Dropbox consent screen for Dropbox connector
Important: Authorize using the same email address as your PipesHub account. Using a different email will cause permission issues on the PipesHub platform.
  1. After giving consent, you can click on Continue to configuration to configure connector settings. More about it in the next section.

​

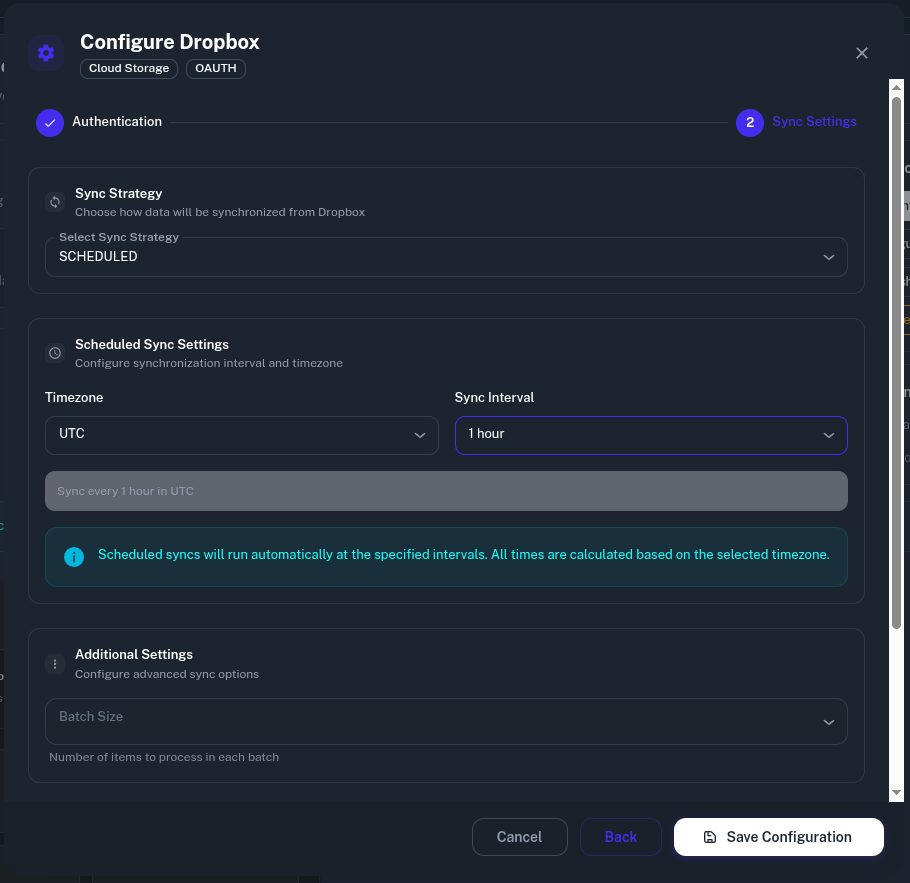

Sync Settings

Sync settings allow you to control how the connector syncs data from Dropbox.Sync Strategy:
  • Scheduled - The connector will automatically sync data from Dropbox at the scheduled interval.
  • Manual - The connector will sync data from Dropbox only when Admin manually triggers the sync from the connector settings page.
Sync Interval: How often the connector syncs data (default: 60 minutes).

​
Sync Filters

Sync filters control which files are fetched from Dropbox. Files that don’t match are skipped entirely. Folders are always synced regardless of these settings to preserve directory structure.

​
Created Date

Filters files by when they were created. Accepts operators like Last 365 Days, Is After, Is Before, or Is Between for a specific range.For example, set Last 365 Days to fetch only files created in the last year.

​
Modified Date

Same as Created Date but filters by the file’s last modified timestamp. Use Last 30 Days or Is After to limit sync to recently updated files.

​
File Extensions

Extensions filter support 2 options: In (only sync listed extensions) or Not In (sync everything except listed extensions). After selecting your desired option, you can select your desired extensions from a list of supported extensions.
Unsupported extensions are excluded under In and allowed through under Not In.

​
Indexing Filters

Indexing filters control which synced files are made searchable. Unlike sync filters, these don’t prevent files from being fetched — files are still recorded in the system but their indexing status is set to Manual Indexing.They can be manually indexed later from the All Records section.

​
Manual Indexing

When enabled, files are synced but not automatically indexed. They won’t appear in search results until explicitly indexed.This can allow you to explicitly control which files and folders are indexed for search, by going to the All Records section and indexing the records manually.

​
Index Shared Items

When enabled, files shared with others are indexed alongside personal files. Disable this to exclude shared content and index only files originating from a user’s own drive.
Dropbox Configuration

​
Connector Workflow

​
How Does Dropbox Connector Work?

Each connector, including the DropboxConnector is a child class (or concrete class) that inherits from BaseConnector. It implements the following abstract methods:
  • init
  • test_connection_and_access
  • get_signed_url
  • stream_record
  • run_sync
  • run_incremental_sync
  • handle_webhook_notification
  • cleanup
  • create_connector (class method)

​
Dropbox Connector Initialization

Workflow for Dropbox sync works like:run_sync - Syncs 4 items:
  1. Users
  2. User Groups
  3. Record Groups (aka Team folders + Personal folder in Dropbox)
  4. Files and Folders - for each user
Each workflow has an Incremental component which only fetches events that have occurred since last sync. For that we save a ‘cursor’ for that event in sync points collection in ArangoDB. e.g., member_events, user_group_events, record_group_events.If no cursor is initialized for that event, we run full sync.

​
User Sync Workflow

Users are fetched from Dropbox then converted to type AppUser using function get_app_users.

​
First Sync

Fetches all users from Dropbox Teams then initializes a sync point: member_events which saves cursor to be used for incremental sync, then sends the users to data_entities_processor.on_new_app_users.

​
Incremental Sync

Uses the saved cursor to call team logs in ‘members’ category and listens for member_change_status events.
  • Member Added: If a user’s status changes to active, the system treats them as a new addition and processes their profile.
  • Member Removed: If a user’s status changes to removed, they are not removed from PipesHub as they might still be part of team.
At the end of the process, the new cursor returned by the Dropbox API is saved to the sync point.

​
User Group Sync Workflow

​
Full Sync (Initial Run)

A full sync is executed when no event cursor is found in the database.
  1. Fetch All Groups: The system retrieves a complete list of all user groups from the Dropbox API, also handles pagination in case result exceeds limits: team_groups_list
  2. Fetch Members for Each Group: It then iterates through every group and fetches a complete list of its members: _fetch_group_members
  3. Batch Processing: Instead of processing each group individually, the system prepares a single, large batch. This batch contains all groups and their corresponding members with their assigned permissions (e.g., Owner, Write).
  4. Single Submission: Once all groups and members have been collected, the entire batch is sent to the data processor data_entities_processor.on_new_user_groups.

​
Incremental Sync

Once a cursor is established (like in Users events), it runs incremental sync to only process events that are new since last sync.
  1. Fetch Events: Using the saved cursor as a bookmark, the connector asks the Dropbox API for all group-related events that have occurred since the last run and calls _process_group_event.
  2. Process Changes: Each event is handled individually. The system processes a variety of changes, including group creation, deletion, renaming, membership adjustments, and role updates.
  3. Update Cursor: After processing the events, the new cursor from the API is saved, bookmarking the position for the next sync cycle.

​
Record Groups Sync Workflow

​
First Sync

​
Team Folders

The sync begins by fetching a complete list of all Team Folders in the Dropbox account. This requires a team admin user’s credentials to authorize the API calls. For each active folder, the system:
  1. Fetches a complete list of all members, including both individual users and user groups.
  2. Maps the Dropbox access levels (owner, editor, viewer) to the system’s internal permission types.
  3. Creates a Record Group for the folder and sends it to the processor along with the full list of member permissions.

​
Personal Folders

After syncing Team Folders, the system creates a “Personal Folder” Record Group for every individual user. Each user is automatically assigned OWNER permission to their own personal space. This batch of personal folders is then sent to the processor.

​
Incremental Sync

This incremental process only applies to Team Folders. It uses a saved cursor to fetch events from the Dropbox audit log related to team folder activity. The system listens for and processes specific events such as:
  • team_folder_create
  • team_folder_rename
  • team_folder_archived
  • team_folder_permanently_delete
When a new folder is created, the system fetches its full membership list and syncs it, similar to the full sync process. For other events like renaming or deletion, it applies the appropriate change.Note: Changes to a folder’s membership (e.g., adding or removing a user) are handled by a separate sharing event sync, not the record group sync.

​
Files and Folders Sync Workflow

​
Workflow Overview

  1. Initiation: The main run_sync function orchestrates the entire process. After handling users and groups, it calls _process_users_in_batches to begin the file sync.
  2. Batch Processing: The _process_users_in_batches function processes active users concurrently. For each user, it calls _run_sync_with_yield.
  3. Sync Scopes: Inside _run_sync_with_yield, an API call to sharing_list_folders identifies all sync targets for a user (their personal folder and any shared team folders). The function then loops through each target to sync it individually.
The connector uses an incremental approach, tracking the state for each folder separately.

​
Detailed Process

  1. Per-Folder Tracking: For each folder, _run_sync_with_yield calls dropbox_cursor_sync_point.read_sync_point to retrieve the last known sync cursor. This cursor determines where the sync should resume.
  2. Data Fetching: The function then enters a loop to fetch changes from Dropbox.
  • It calls files_list_folder for an initial sync or files_list_folder_continue if a cursor exists.
  • The results from the API are passed to _process_dropbox_items_generator.
  1. Individual Item Processing: The generator loops through each item and calls _process_dropbox_entry to do the main conversion work. This function:
  • Calls tx_store.get_record_by_external_id to check if the item already exists in the local database.
  • Calls _convert_dropbox_permissions_to_permissions to fetch and format the item’s access rights.
  • Returns a RecordUpdate object summarizing the changes.
  1. Database Updates: Back in _run_sync_with_yield, the results are handled:
  • New records are batched and sent to data_entities_processor.on_new_records.
  • Updated or deleted items are passed to _handle_record_updates, which then calls specific methods like data_entities_processor.on_record_content_update or on_record_deleted.
  1. State Management: After a page of changes is processed, _run_sync_with_yield calls dropbox_cursor_sync_point.update_sync_point to save the new cursor for that specific folder, ensuring the next sync is incremental.

​
Sharing & Permission Sync

This is an incremental, event-driven process designed to keep file and folder permissions up-to-date.

​
Workflow

  1. Listen for Events: Using a saved cursor, the system listens for specific sharing events in the Dropbox audit log, such as when a member is added, removed, or has their role changed on a file or folder.
  2. Trigger Re-Sync: An event is treated as a notification that a file or folder’s permissions have changed. Instead of just applying the single change, the system triggers a full re-sync of that specific item.
  3. Fetch Fresh Data: It makes a new API call to Dropbox to fetch the latest, complete metadata for the affected file or folder. This ensures the system gets the current, authoritative state of all permissions on that item.
  4. Process and Update: The fresh data is processed, and the item’s permissions are updated in the database to reflect the latest state.
  5. Update Cursor: Finally, the new cursor is saved to mark the position for the next sync.

​
FAQ

There are three common causes:
  1. Email mismatch - The email used during connector authentication doesn’t match your PipesHub account email. This causes permission issues preventing you from accessing synced data.
    • Fix: Reconfigure the connector and authenticate using the same email as your PipesHub account.
  2. Records show in “All Records” but not in search - Documents display in the All Records section but don’t appear in search query results.
    • Fix: Verify sync filters in the connector settings and ensure indexing has completed. Check that the data matches your search query criteria.
  3. Data not yet indexed - The connector is still syncing or hasn’t completed the initial indexing process.
    • Fix: Go to Settings > Connectors, check the sync status, and wait for indexing to complete.
