Box

​

Box Platform Architecture

​

APIs Documentation

• Box Platform API: https://developer.box.com/reference/
• Box Authentication Guide: https://developer.box.com/guides/authentication/
• Box Enterprise Events: https://developer.box.com/guides/events/enterprise-events/

​

Concept of Event Stream

​

Upcoming Features

• Box Notes: Native Box Notes content extraction and indexing
• Comments: File and folder comment thread synchronization

​

Box Enterprise Account

​

Step 1: Create a Box Application

1. Navigate to the Box Developer Console and sign in with your Box admin credentials.

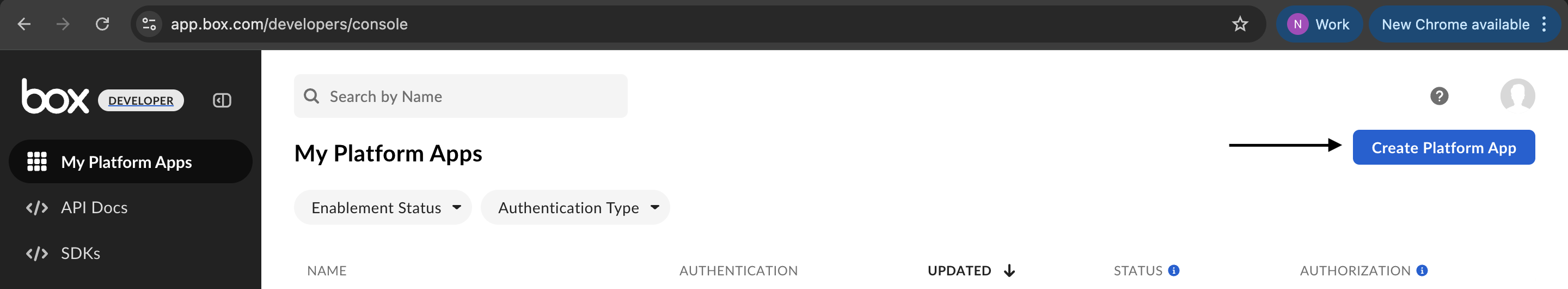

2. Click the Create New App button.
3. Configure your new app with the following settings:
   • Select App Type: Choose Custom App.
   • Authentication Method: Select OAuth 2.0 with Client Credentials Grant.
   • Name your app: Enter a unique name for your application, for example, “PipesHub Connector”.

4. Click Create App. You will be redirected to your new app’s configuration page.

​

Step 2: Configure Application Settings

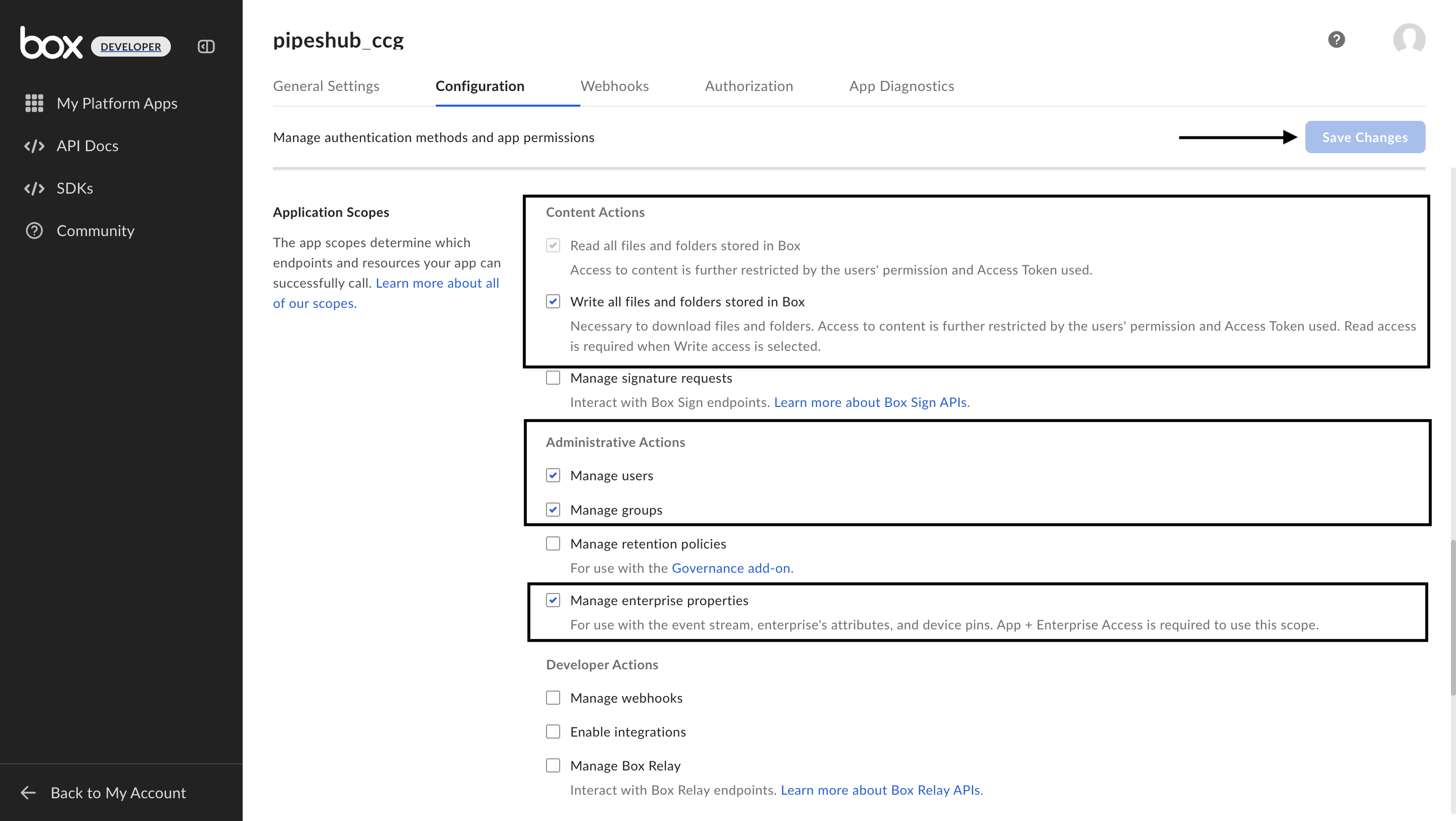

1. On your app’s Configuration page, scroll to the Application Scopes section.
2. Enable the following scopes that PipesHub needs:
   • Content Actions:
     • Read all files and folders stored in Box
     • Write all files and folders stored in Box
   • Administrative Actions:
     • Manage users
     • Manage groups
     • Manage enterprise properties

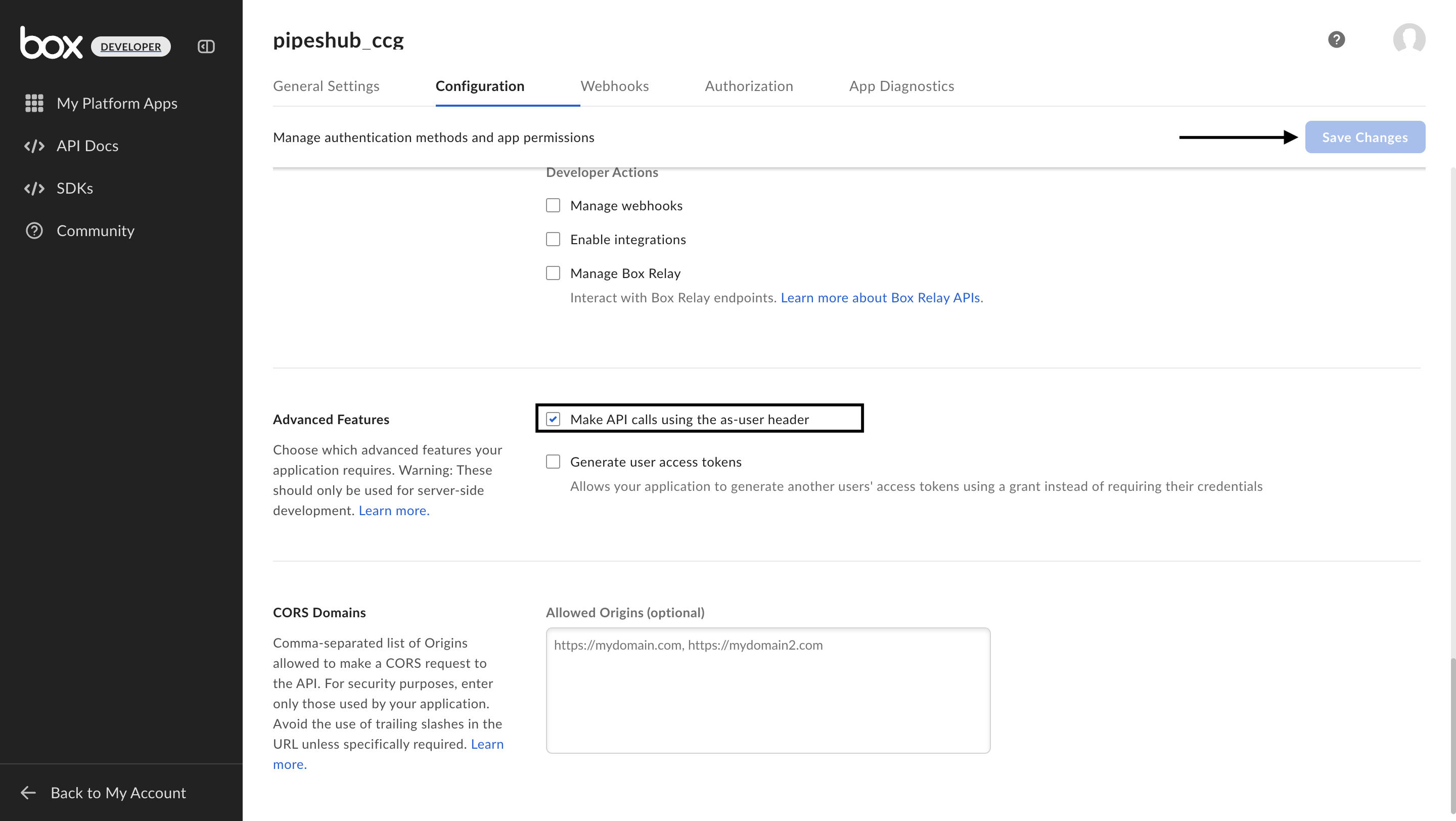

3. Under Advanced Features, enable:
   • Perform actions as users

4. In the App Access Level section, select App + Enterprise Access.

​

Step 3: Get Application Credentials

1. In the OAuth 2.0 Credentials section:
   • Note your Client ID
   • Click Fetch Client Secret to reveal your Client Secret
   • Copy both values for later use
2. Find your Enterprise ID:
   • Go to your Box Admin Console
   • Navigate to General Settings → App Info
   • Copy your Enterprise ID

​

Step 4: Admin Authorization

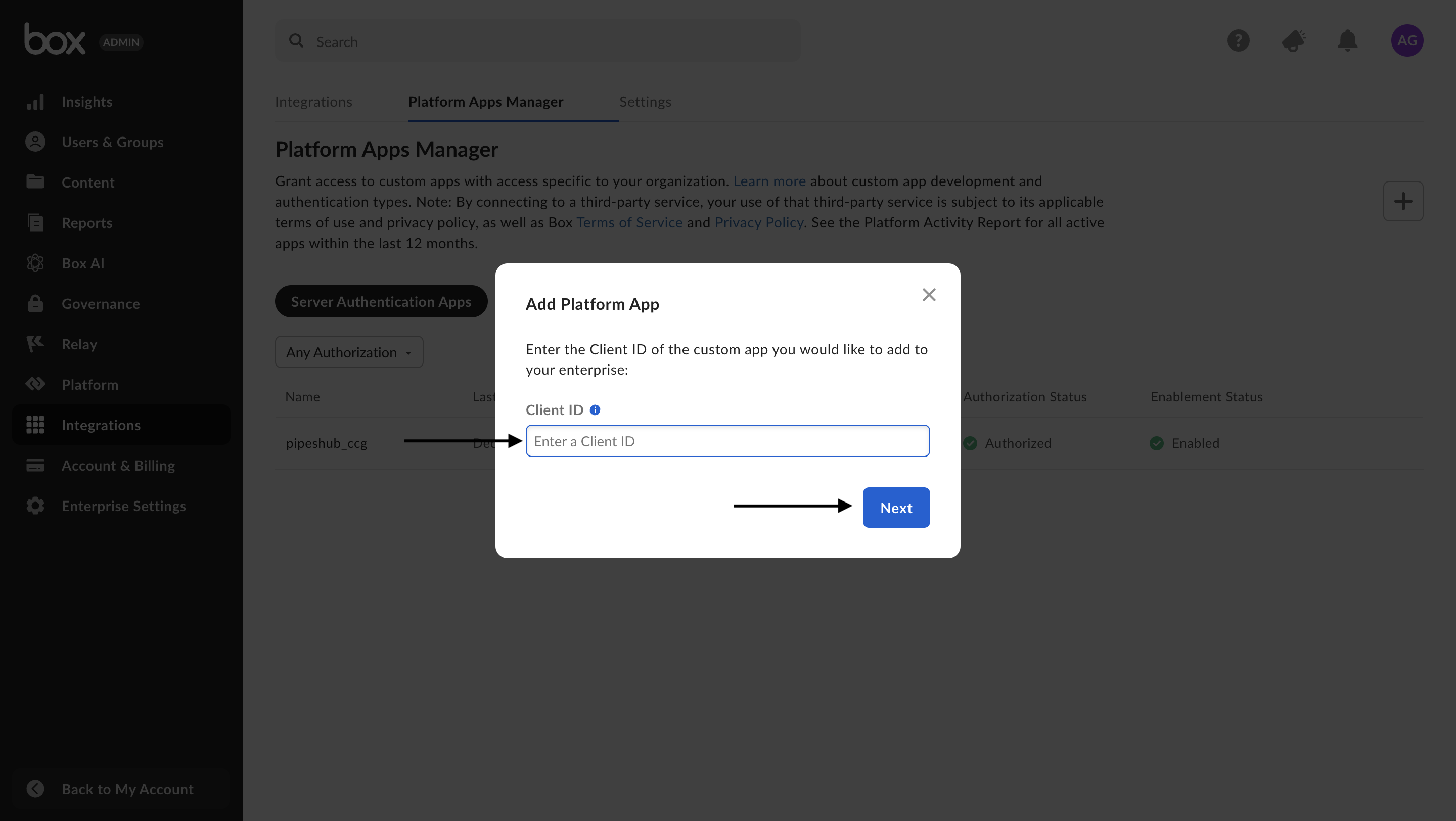

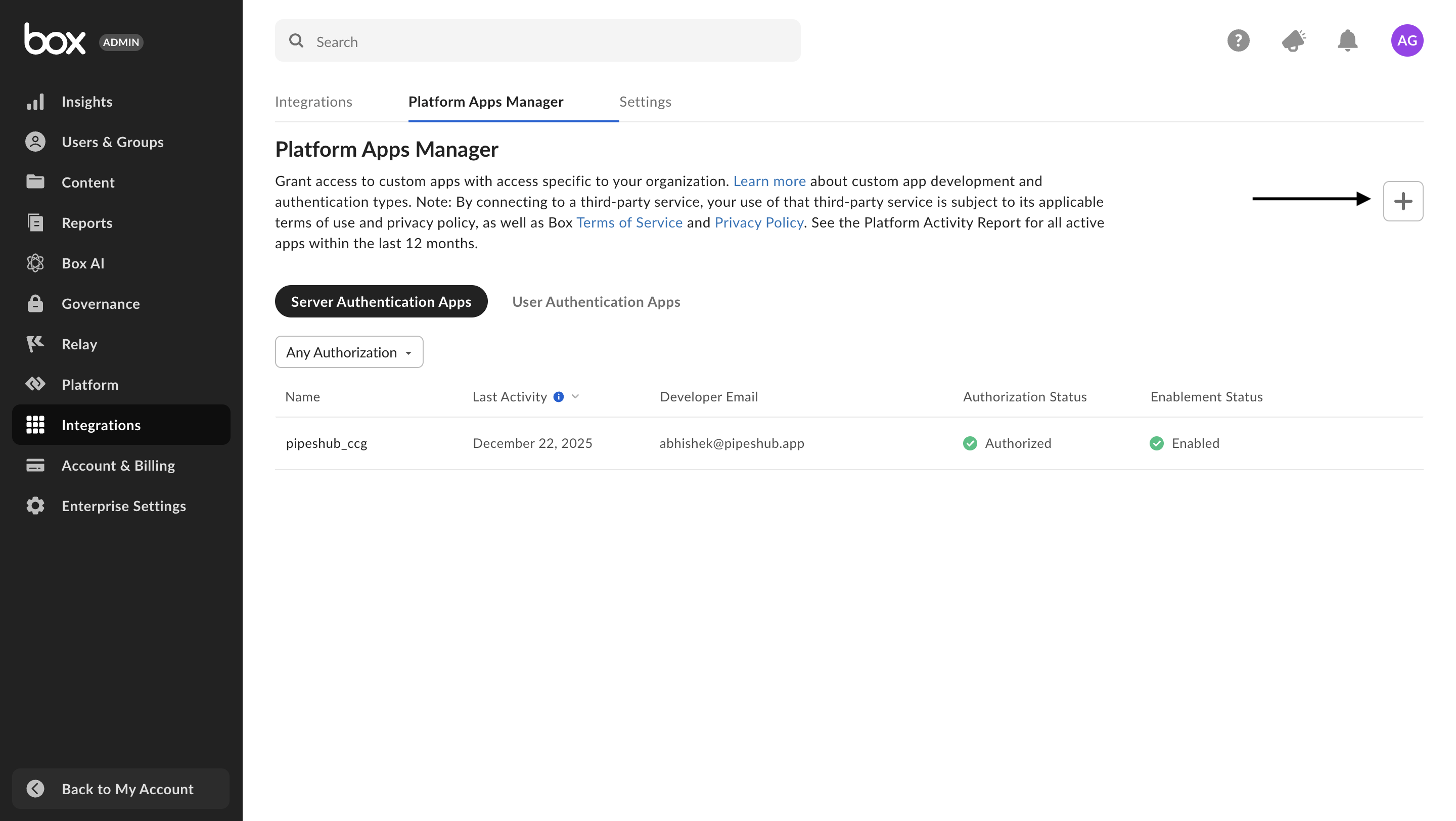

1. As an admin, approve the app:
   • Go to the Admin Console
   • Navigate to Apps → Custom Apps
   • Find your application and click Authorize

​

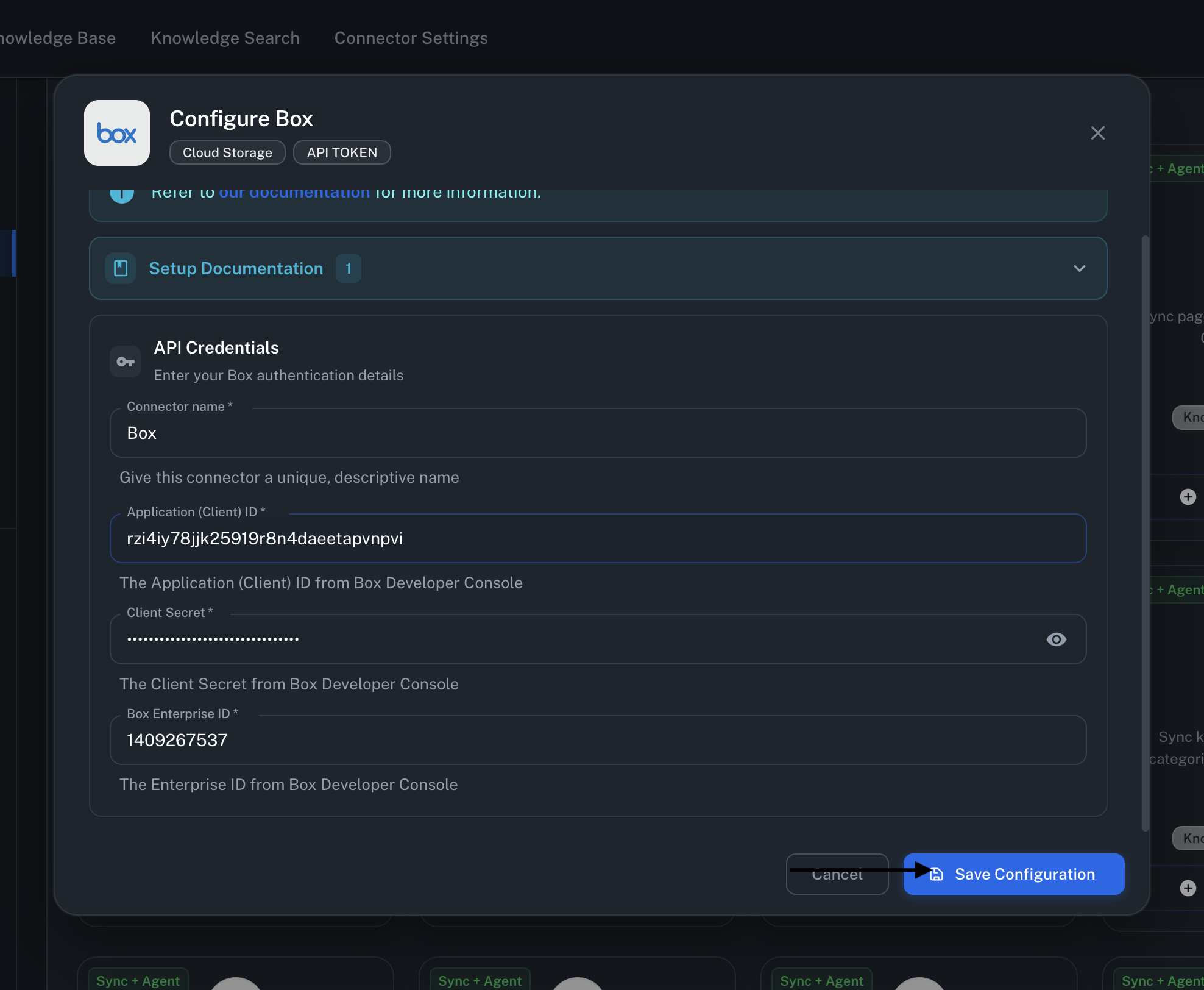

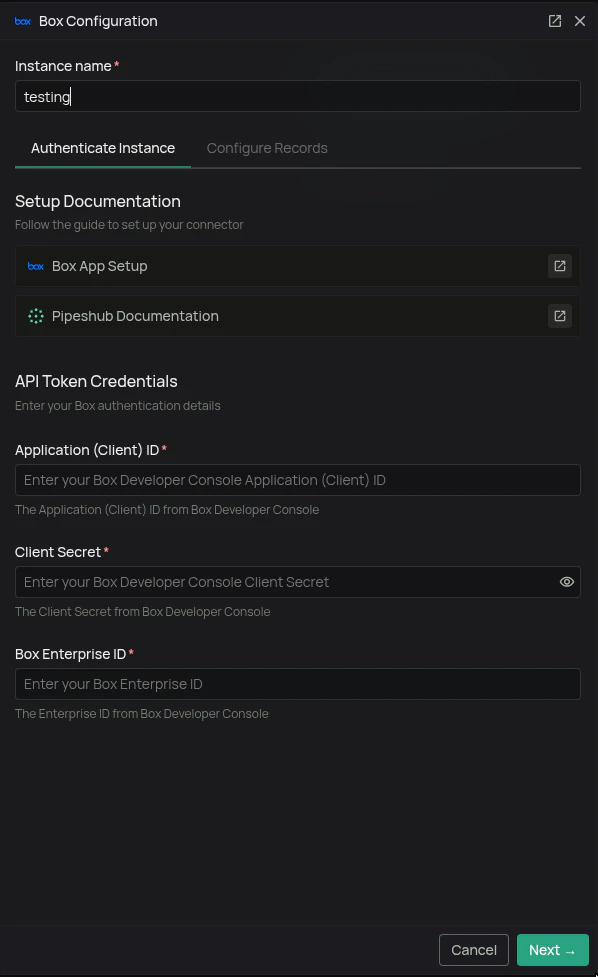

Step 1: Configure Connection

1. Open your PipesHub application and navigate to Connection Settings.
2. Select Box from the list of available data sources.
3. Enter the required credentials:
   • Client ID: Paste the Application (Client) ID from Box Developer Console
   • Client Secret: Paste the Client Secret from Box Developer Console
   • Enterprise ID: Paste your Box Enterprise ID

​

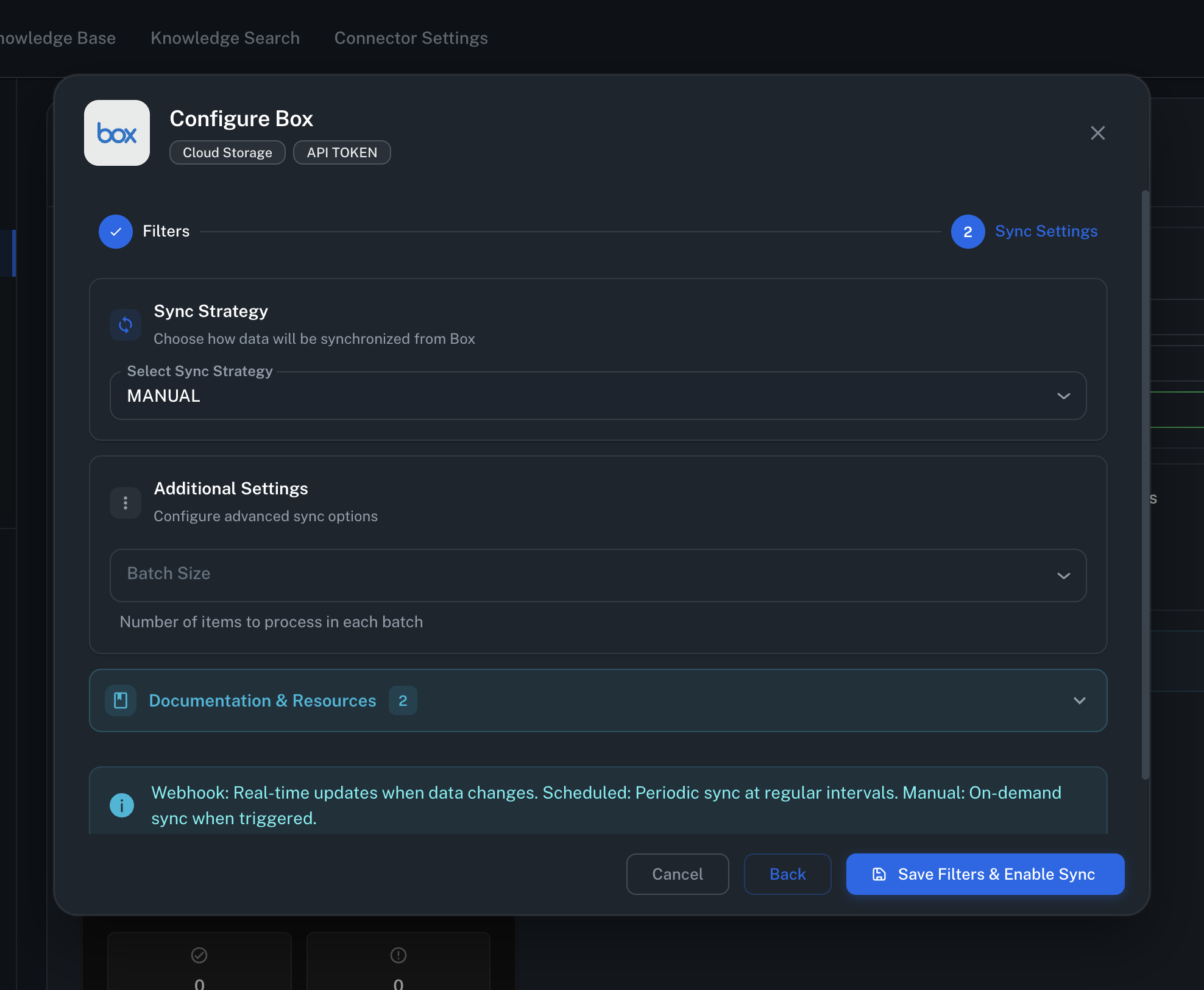

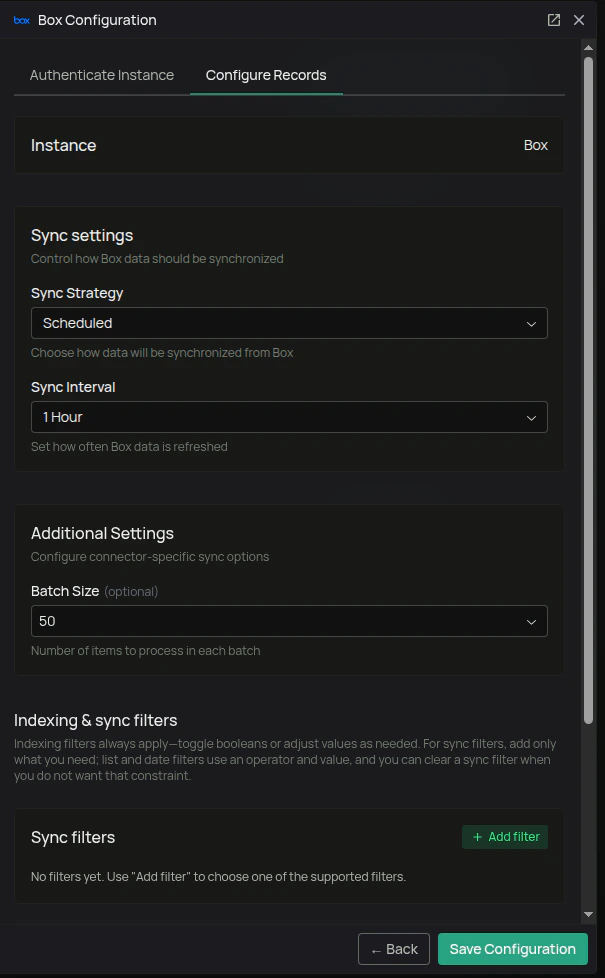

Step 2: Set Sync Strategy

• Manual: Trigger syncs manually when needed
• Scheduled: Automatically run syncs at regular intervals (15 min, 30 min, 1 hr, 4 hr, etc.)

​

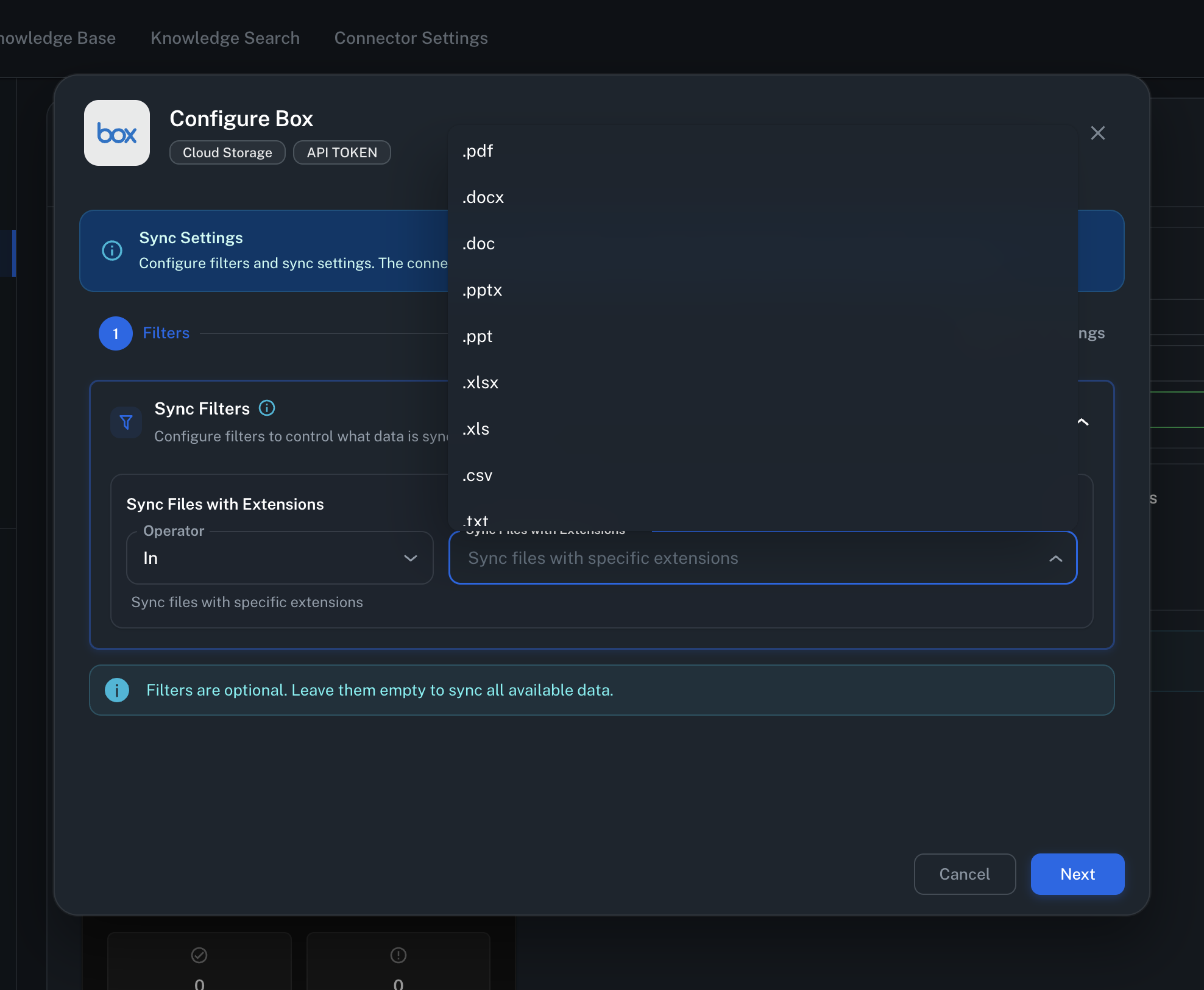

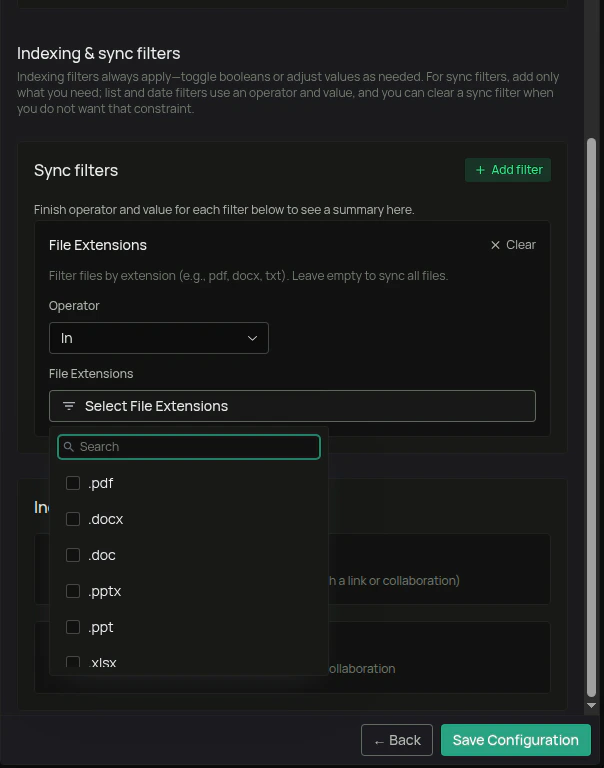

Step 3: Configure Filters (Optional)

• File Extensions: Limit sync to specific file types (e.g., .pdf, .docx, .xlsx)

​

Step 4: Enable Connection

1. Click Save Configuration.
2. Click Enable to activate the connector.
3. Your Box enterprise content will start syncing based on your configured strategy.

​

How Does Box Connector Work?

• init - Initialize Box client with credentials
• test_connection_and_access - Verify connectivity and permissions
• get_signed_url - Generate temporary download URLs
• stream_record - Stream file content
• run_sync - Execute full or smart synchronization
• run_incremental_sync - Process only changes since last sync
• cleanup - Clean up resources
• create_connector - Factory method for connector creation

​

Box Connector Initialization

1. Users - Enterprise users and their profiles
2. User Groups - Enterprise groups and memberships
3. Record Groups - Root folders (user drives)
4. Files and Folders - Complete file hierarchy for all users

• box_cursor_sync_point - For file/folder events
• user_sync_point - For user changes
• user_group_sync_point - For group changes

​

User Sync Workflow

​

First Sync

1. Fetch All Users: Retrieves complete user list from Box Enterprise using pagination.
2. Process User Data: Converts Box user objects to AppUser format with profile information.
3. Batch Submission: Sends all users to data_entities_processor.on_new_app_users.
4. Initialize Cursor: Saves initial sync point for future incremental syncs.

​

Incremental Sync

​

User Group Sync Workflow

​

Full Sync (Initial Run)

1. Fetch All Groups: Retrieves complete list of enterprise groups from Box API with pagination.
2. Fetch Group Memberships: For each group, fetches all members and their roles.
3. Process Permissions: Maps Box group roles to PipesHub permission types (Admin, Member).
4. Batch Processing: Collects all groups and memberships into a single batch.
5. Submit to Processor: Sends the complete batch to data_entities_processor.on_new_user_groups.

​

Incremental Sync

1. Fetch Events: Retrieves group-related events from Enterprise Event Stream since last sync.
2. Process Changes: Handles various event types:
   • Group creation and deletion
   • Group name changes
   • Membership additions and removals
   • Role/permission updates
3. Update State: Saves the new cursor position for next sync cycle.
4. Reconciliation: Periodically validates that all Box groups exist in the database and removes orphaned entries.

​

Record Groups Sync Workflow

​

Full Sync

1. Fetch Active Users: Retrieves list of all active enterprise users.
2. Create Record Groups: For each user, creates a RecordGroup representing their root folder.
3. Set Permissions: Assigns OWNER permission to each user for their own drive.
4. Batch Submission: Sends all record groups to the processor with full permission mappings.

​

Incremental Sync

​

Files and Folders Sync Workflow

​

Workflow Overview

1. User Processing: The connector processes users sequentially to avoid API conflicts when using “As-User” impersonation.
2. Folder Traversal: For each user, starts from their root folder (ID: 0) and recursively traverses the entire folder tree.
3. Change Detection: During full sync, the connector recursively fetches all items. For incremental sync, it uses the Box Enterprise Event Stream to detect changes.

​

Detailed Process

​

Initial Sync

1. Start from Root: Begins at each user’s root folder (All Files).
2. Recursive Fetch: For each folder:
   • Fetches folder contents using client.folder(folder_id).get_items()
   • Processes files and subfolders
   • Recursively descends into subfolders
3. Item Processing: For each item:
   • Metadata Extraction: Collects file/folder properties (name, size, timestamps, path, etag, sha1)
   • Permission Fetching: Retrieves collaborations and sharing settings via client.folder(id).get_collaborations()
   • Conversion: Maps Box permissions to PipesHub permission types:
     • owner → OWNER
     • co-owner → OWNER
     • editor → WRITE
     • viewer uploader → WRITE
     • previewer uploader → WRITE
     • viewer → READ
     • previewer → READ
4. Change Detection: Compares etag and modified timestamps with existing database records to identify:
   • New files/folders
   • Modified content
   • Moved items
   • Permission changes
5. Batch Processing: Items are batched (default 100 per batch) and sent to:
   • data_entities_processor.on_new_records - For new items
   • data_entities_processor.on_record_content_update - For modifications
   • data_entities_processor.on_record_metadata_update - For metadata changes

​

Incremental Sync

1. Event Listening: Monitors event stream for file/folder activities:
   • FILE.UPLOADED
   • FILE.DELETED
   • FILE.MOVED
   • FILE.COPIED
   • FOLDER.CREATED
   • FOLDER.DELETED
   • FOLDER.MOVED
   • COLLABORATION.CREATED
   • COLLABORATION.ACCEPTED
   • COLLABORATION.REMOVED
2. Event Deduplication: Groups events by item ID to process each item only once per sync cycle.
3. Owner Impersonation: Uses “As-User” header to fetch items on behalf of their owners, ensuring proper permission context.
4. Parent Folder Validation: Before processing files, ensures all parent folders exist in the database, creating them recursively if needed.
5. Targeted Fetching: For modified items:
   • Fetches fresh metadata from Box API
   • Re-processes permissions
   • Updates database records
6. Deletion Handling: Processes deletion events by marking records as deleted in the database.
7. Stream Position Update: After processing all events, saves the new stream_position cursor for the next incremental sync cycle. This single cursor tracks the state of the entire enterprise event stream, not individual folders.

​

Permission & Collaboration Sync

​

Permission Hierarchy

1. Direct Collaborations: Explicit permissions set on individual items.
2. Inherited Permissions: Permissions flow down from parent folders to children.
3. Group Memberships: Users inherit permissions through group collaborations.
4. Public/Company Links: Shared links can grant broader access.

​

Sync Process

1. Fetch Collaborations: For each file/folder, retrieves all collaborations via API.
2. Map Accessible By: Identifies who has access:
   • Individual users
   • User groups
   • Organization-wide (company shared links)
   • Public (external sharing)
3. Virtual Groups: Creates system groups for special access types:
   • PUBLIC_ACCESS_GROUP - For publicly shared items
   • ORGANIZATION_ACCESS_GROUP - For company-wide shared items
4. Permission Updates: When collaboration events occur:
   • Fetches latest collaboration list
   • Re-processes all permissions for the affected item
   • Handles recursive permission removal when folder access is revoked
5. Recursive Revocation: When a user loses access to a folder:
   • Removes permissions from the folder
   • Recursively removes permissions from all descendant files and folders
   • Ensures access control consistency

​

File Extension Filtering

1. Configuration: Set allowed file extensions in connector settings (e.g., .pdf, .docx, .xlsx).
2. Filter Application: Files are filtered during the sync process based on their extensions.
3. Folder Handling: Folders are always synced regardless of filters to maintain proper hierarchy.

​

Batch Processing

• Batch Size: Configurable (default 100 items)
• Concurrent Batches: Processes multiple batches for different users in parallel
• Rate Limiting: Respects Box API rate limits (50 requests per second)

​

Smart Sync Strategy

1. No Cursor: Performs full sync
2. Has Cursor: Performs incremental sync using event stream
3. Cursor Expired: Falls back to full sync and establishes new cursor

​

Authentication Errors

• Verify Client ID, Client Secret, and Enterprise ID are correct
• Ensure the app has been authorized by your Box admin
• Check that the app has not been deauthorized in Box Admin Console
• Verify your enterprise account is active

​

Permission Errors

• Ensure all required scopes are enabled in Box Developer Console
• Verify “Perform actions as users” is enabled
• Check that App Access Level is set to “App + Enterprise Access”
• Re-authorize the application if scopes were changed

​

Sync Issues

• Check the sync logs for specific errors
• Verify users are active in Box
• Ensure folders are not restricted by admin policies
• Try triggering a manual full sync
• Adjust batch size if processing large datasets

​

Rate Limiting

• The connector has built-in rate limiting (50 req/s)
• Increase sync interval for scheduled syncs
• Contact Box support to request higher rate limits for your enterprise

​

Sync Strategy

• Use Incremental Sync: After initial setup, rely on incremental syncs for efficiency
• Schedule Syncs Wisely: Set sync intervals based on your team’s activity patterns. For large datasets, consider running scheduled syncs during off-peak hours

​

Filter Configuration

• Be Specific: Only sync file types you need to index
• Exclude Large Files: Consider excluding video and large binary files if not needed
• Review Regularly: Audit your filters to ensure they match current needs

​

Monitoring

• Check Logs: Regularly review sync logs for errors or warnings
• Monitor Performance: Track sync duration and adjust batch size if needed
• Validate Data: Periodically verify that critical files are being synced correctly
