Nextcloud

​

WebDAV Client

​

APIs Documentation

• Nextcloud WebDAV Documentation: https://docs.nextcloud.com/server/latest/user_manual/en/files/access_webdav.html
• Nextcloud Developer Manual: https://docs.nextcloud.com/server/latest/developer_manual/

​

Concept of Cursor

1. When you first sync, the connector fetches all files and folders using WebDAV PROPFIND.
2. After the sync completes, the connector saves the latest activity ID as a cursor.
3. Instead of re-downloading the entire file list to check for changes, the connector queries the Activity API with this cursor.
4. The API returns only the files and folders that have been added, modified, or deleted since the last sync.

​

Step 1: Access Your Nextcloud Account

1. Sign in to your Nextcloud instance with your credentials.

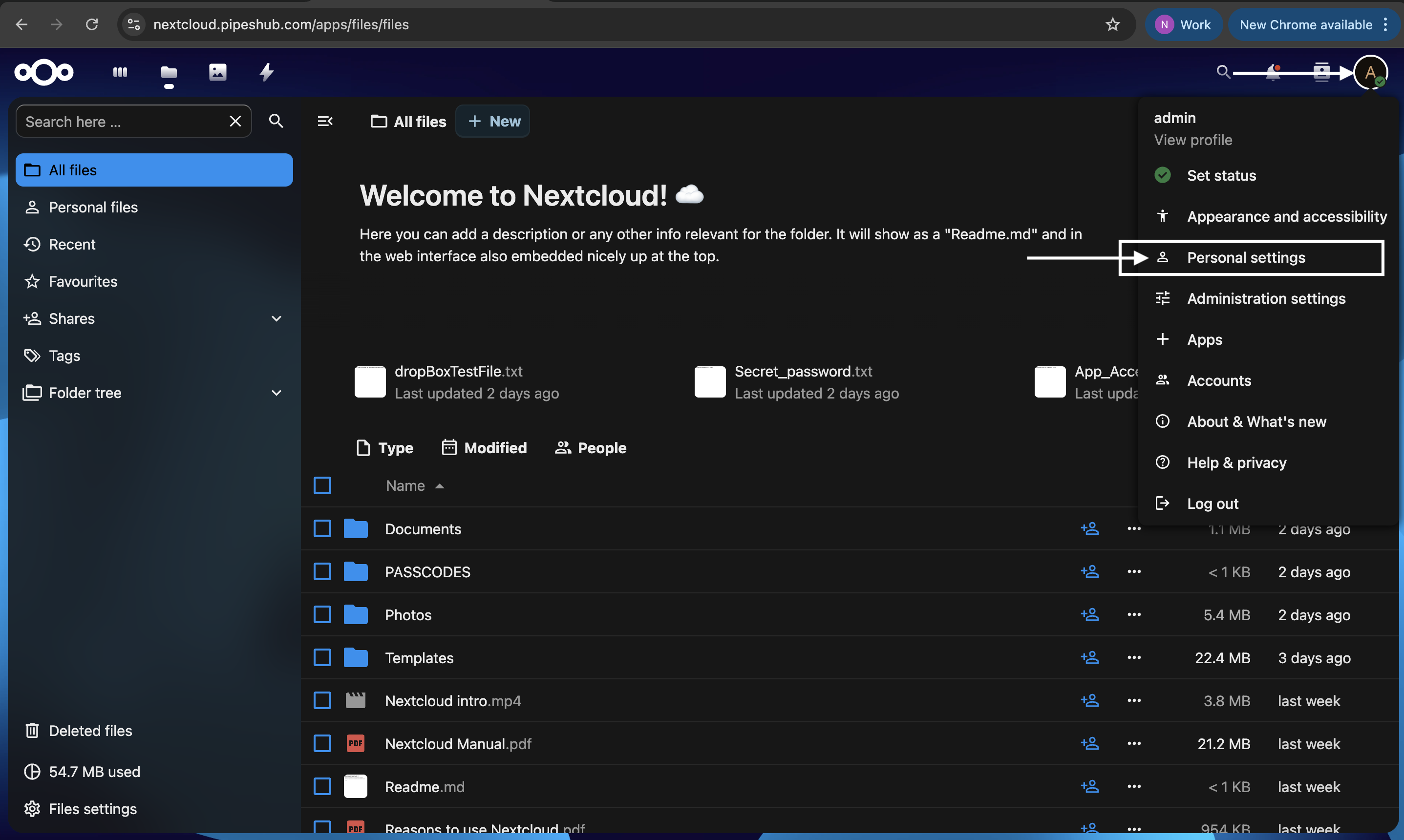

2. Click on your profile icon in the top-right corner.

​

Step 2: Navigate to Security Settings

1. From the dropdown menu, select Personal settings.

2. In the left sidebar, click on Security.

​

Step 3: Create App Password

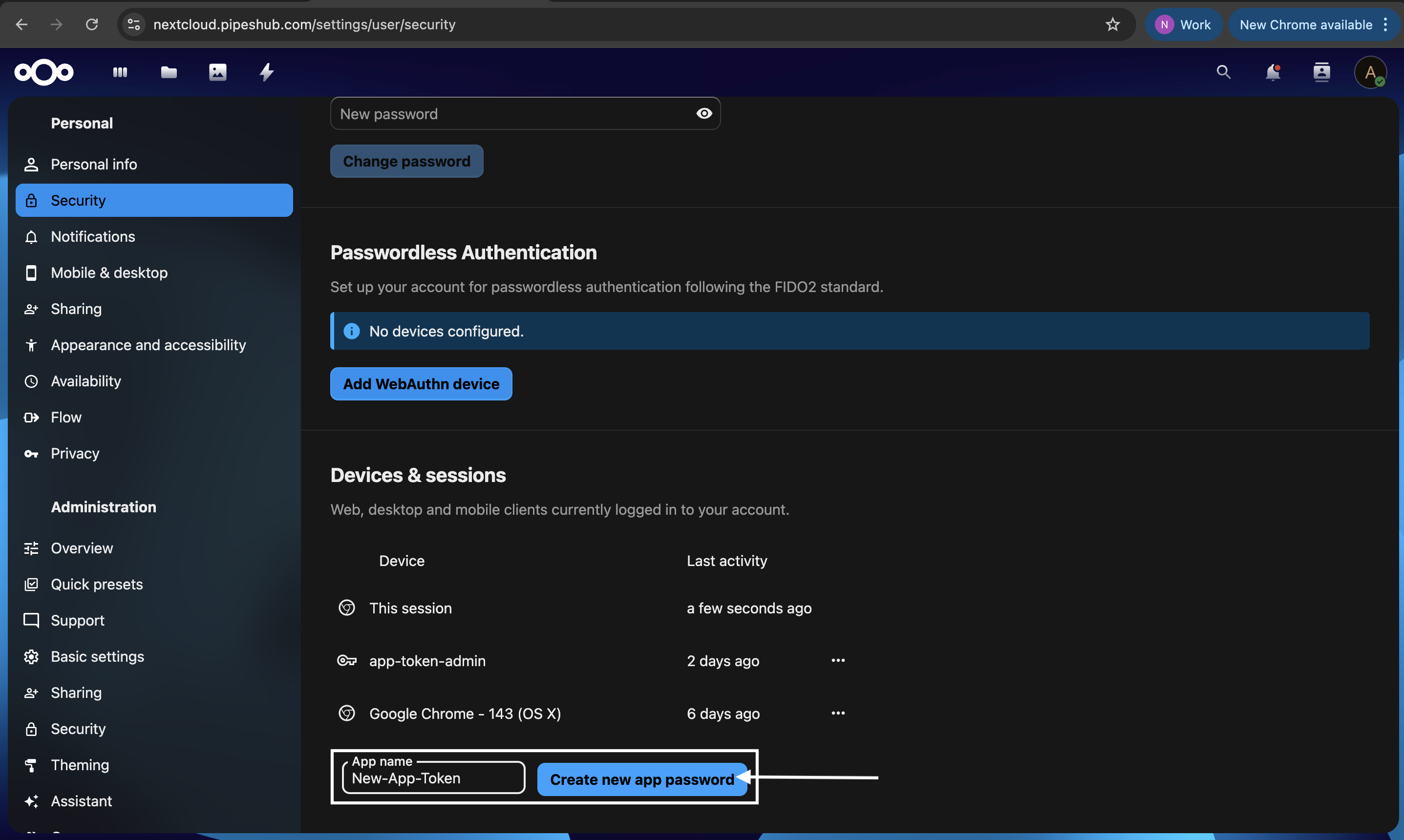

1. Scroll down to the Devices & sessions section.
2. In the App name field, enter a descriptive name for this connection (e.g., “PipesHub Connector”).
3. Click the Create new app password button.

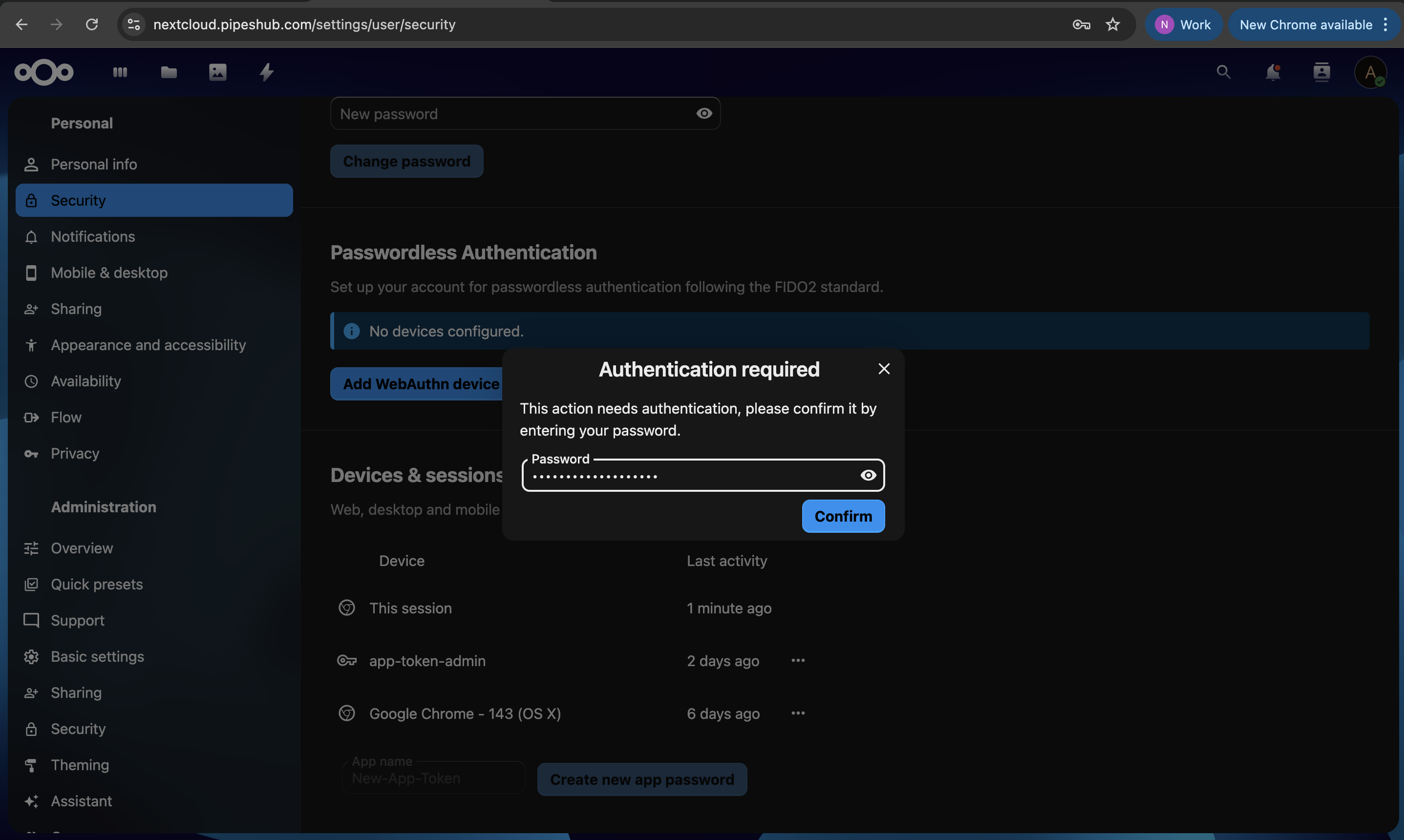

4. You may be prompted to re-enter your Nextcloud password for security verification.

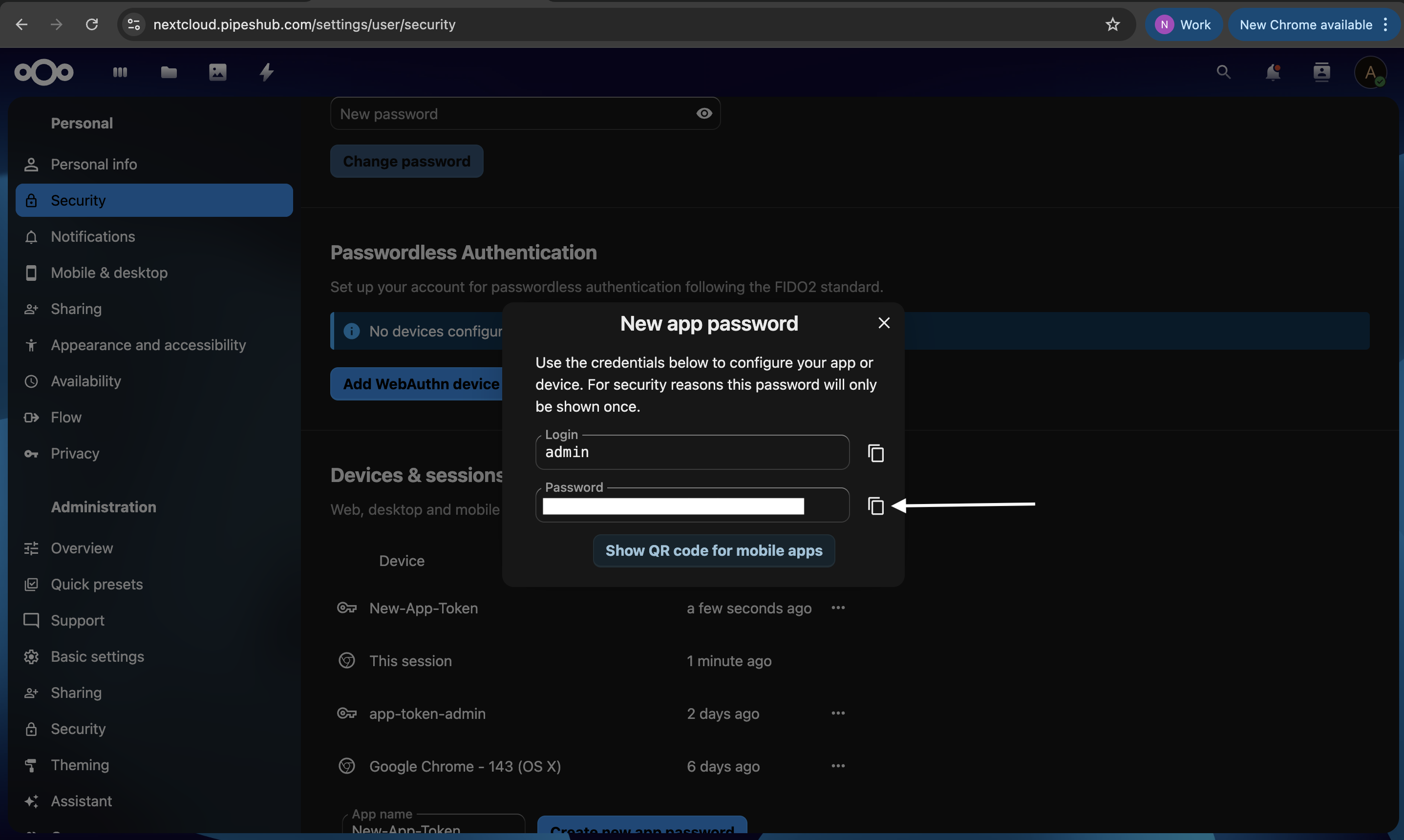

5. After confirmation, Nextcloud will generate an App Password (typically in the format xxxx-xxxx-xxxx-xxxx).

6. Important: Copy this password immediately as it will only be shown once.

​

Step 4: Save Your Credentials

• Base URL: Your Nextcloud instance URL (e.g., https://cloud.example.com)
• Username: Your Nextcloud username
• App Password: The generated app password from Step 3

​

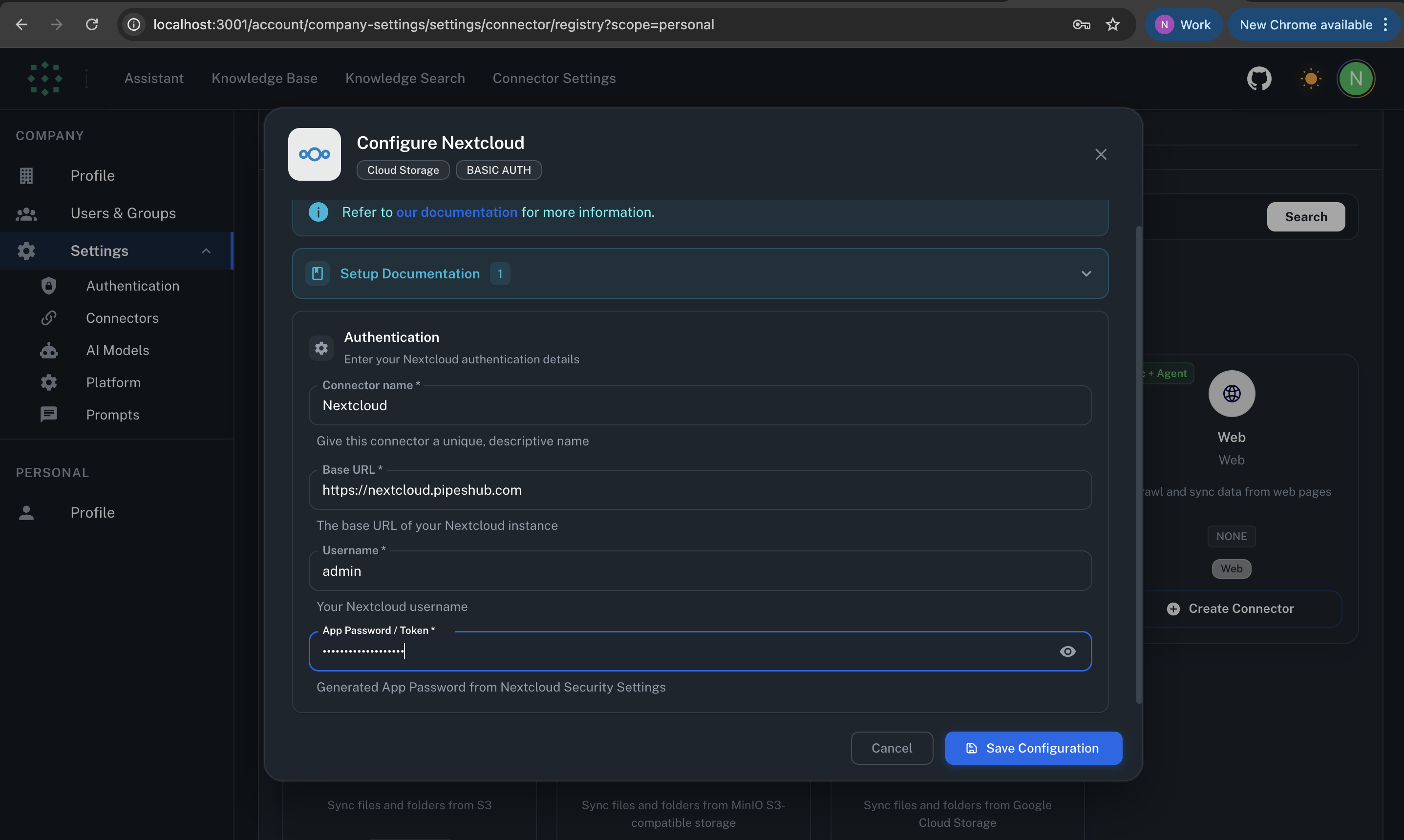

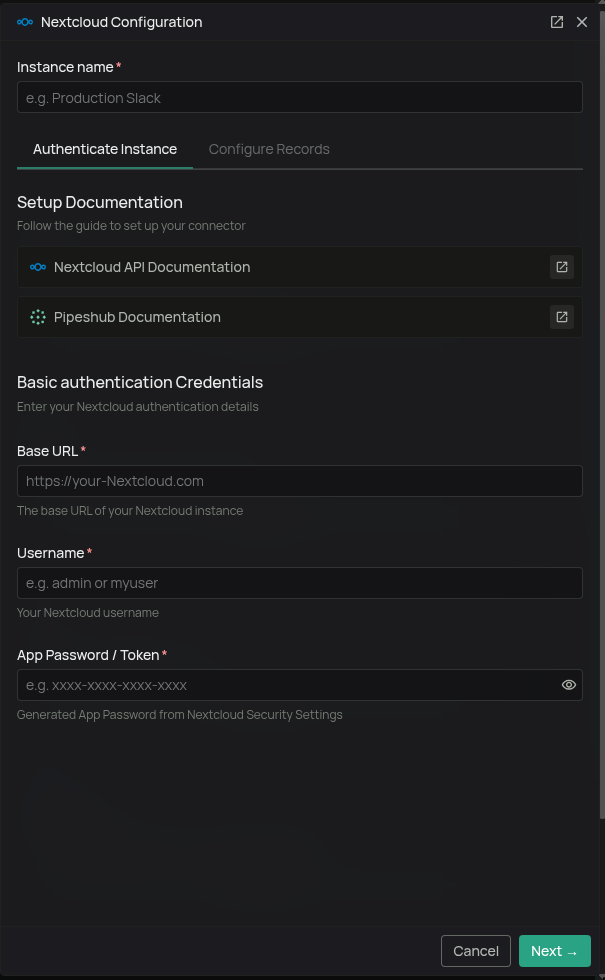

Step 1: Configure Connection

1. Open your PipesHub application and navigate to Connection Settings.
2. Select Nextcloud.
3. Enter your credentials:
   • Base URL: Your Nextcloud instance URL (e.g., https://cloud.example.com)
   • Username: Your Nextcloud username
   • App Password: The app password you generated in the previous step

​

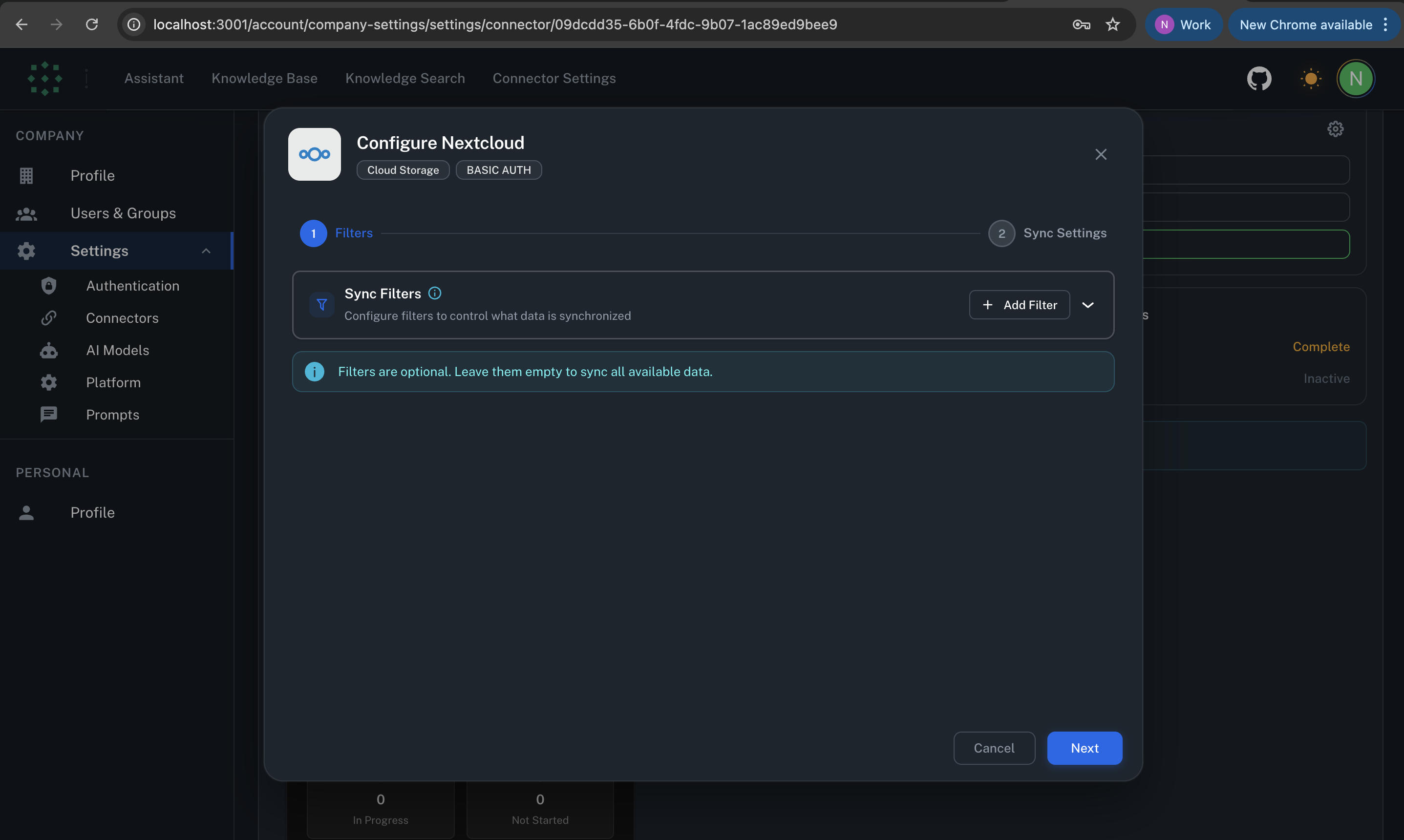

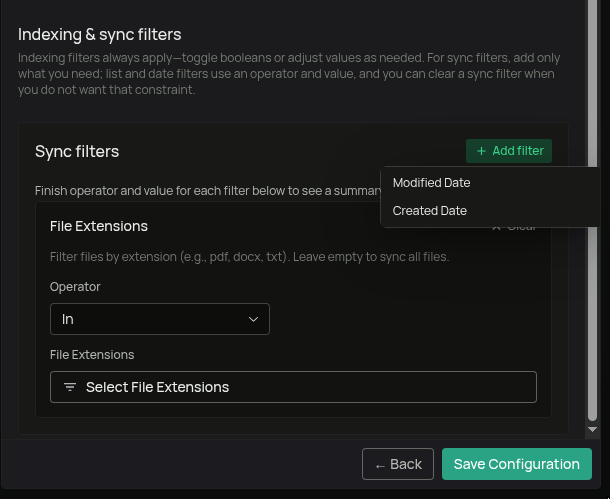

Step 2: Configure Filters (Optional)

• Modified Date Filter: Only sync files modified within a specific date range
• Created Date Filter: Filter files by creation date
• File Extension Filter: Include or exclude specific file types (e.g., .pdf, .docx)

​

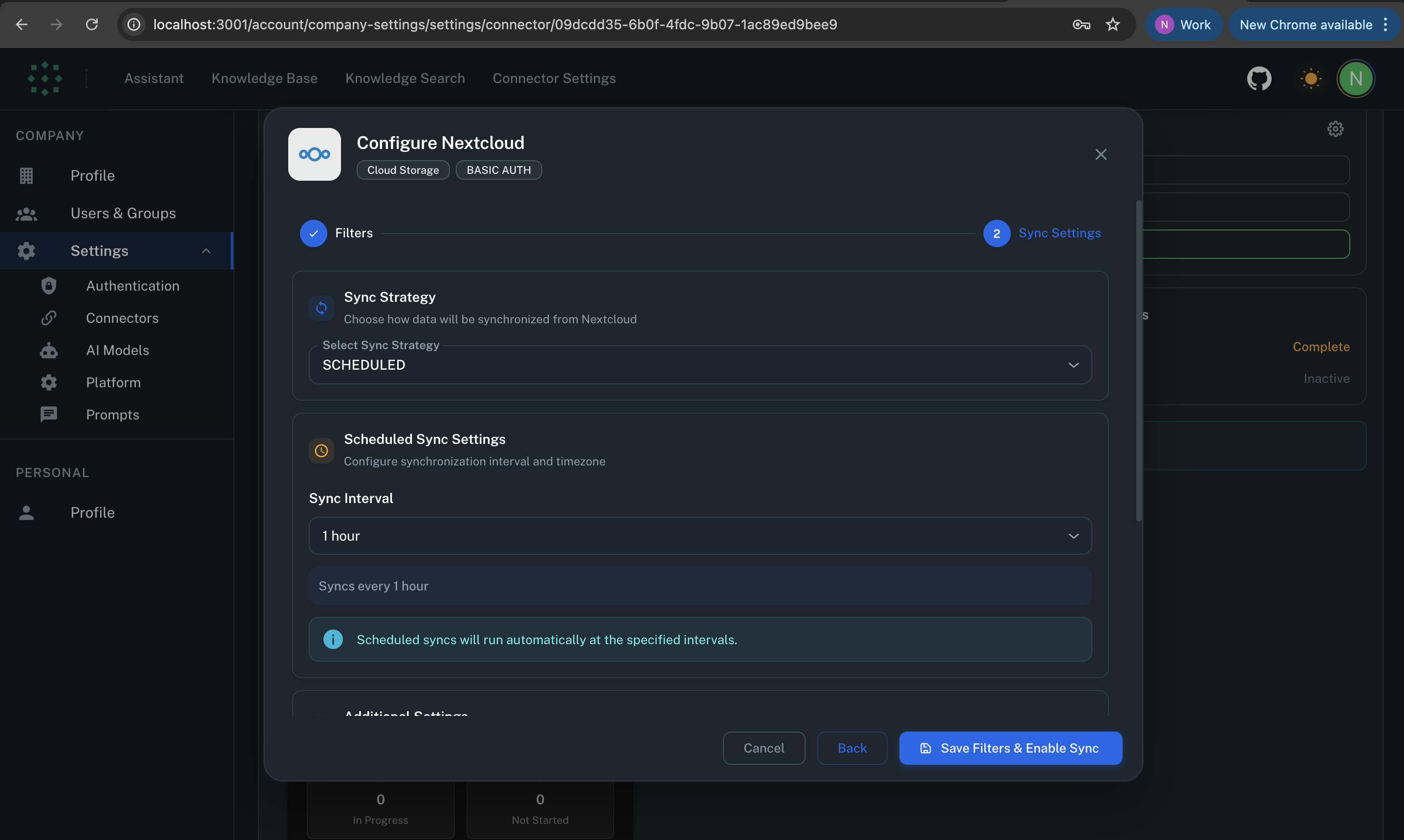

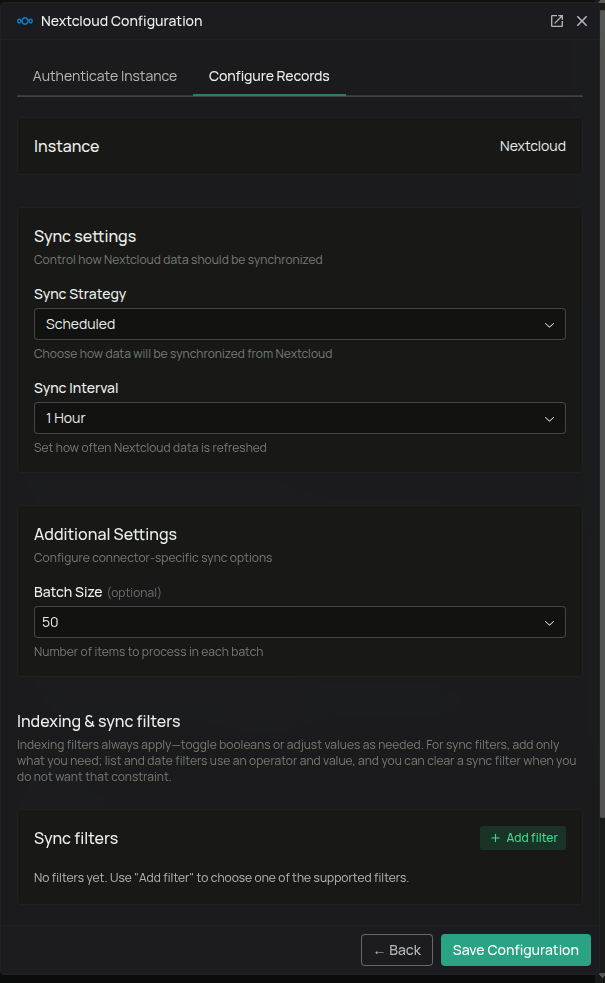

Step 3: Set Sync Strategy

• Sync Type: Choose between Manual or Scheduled
• Batch Size: Number of files processed in one transaction (default: 100)
• Schedule Interval: For scheduled syncs, set the interval (e.g., every 60 minutes)

​

Step 4: Save and Sync

1. Click Save Configuration.
2. The connection will be tested automatically to verify your credentials.
3. Once verified, click Start Sync to begin the initial synchronization.
4. The first sync will be a full sync, fetching all files and folders from your Nextcloud account.

​

How Does Nextcloud Connector Work?

• init
• run_sync
• _run_full_sync_internal
• _run_incremental_sync_internal
• _process_nextcloud_items_generator

​

Connector Initialization

1. Validates credentials from configuration
2. Creates a Nextcloud REST client with username and app password
3. Retrieves current user information
4. Initializes the data source for WebDAV operations

​

Smart Sync Strategy

1. User Identity (The account owner)
2. Record Group (The “Personal Drive”)
3. Files and Folders (Smart sync based on cursor state)

• Full Sync: If no cursor exists, performs complete WebDAV PROPFIND
• Incremental Sync: If cursor exists, queries Activity API for changes only

​

User and Record Group Sync Workflow

​

Identity Resolution

1. Validates the connection with a test WebDAV request
2. Retrieves user email from Nextcloud (if available)
3. Uses username as the primary identifier

​

Drive Creation

• Name: “Nextcloud - {Username}”
• Type: Drive
• Permission: The user is assigned as the OWNER

​

Files and Folders Sync Workflow

​

Workflow Overview

1. Cursor Check: The connector checks the activity sync point to determine if a previous sync has occurred.
2. Data Fetching:
   • Full Sync: If no cursor exists, uses WebDAV PROPFIND with Depth: infinity to fetch the entire directory tree.
   • Incremental Sync: If a cursor exists, queries the Activity API for changes since the last sync.
3. Hierarchical Processing: Entries are sorted by depth (folders before files) to ensure parent records exist before children are processed.
4. Generator Processing: Results are processed through _process_nextcloud_items_generator for memory-efficient batch handling.

​

Detailed Process

​

Initial Sync

1. WebDAV PROPFIND: Fetches all files and folders recursively from the user’s root directory.
2. For Each Item:
   • Metadata Extraction: Collects file/folder properties:
     • File ID (unique identifier)
     • Path (full WebDAV path)
     • ETag (version identifier for change detection)
     • Size (file size in bytes)
     • Modified Time (last modification timestamp)
     • Resource Type (file or folder)
   • Parent Resolution: Extracts parent path and looks up parent record ID
   • MIME Type Detection: Determines file type from extension or content-type header
   • Permission Assignment: Assigns OWNER permission to the authenticated user
3. Change Detection: Compares ETag and modified timestamps with existing database records to identify:
   • New files/folders
   • Modified content
   • Moved items
   • Metadata changes
4. Batch Processing: Items are batched (default 100 per batch) and sent to:
   • data_entities_processor.on_new_records - For new items
   • data_entities_processor.on_record_content_update - For content modifications
   • data_entities_processor.on_record_metadata_update - For metadata changes
5. Cursor Initialization: After successful full sync, saves the latest activity ID as cursor for future incremental syncs.

​

Incremental Sync

1. Event Listening: Monitors activity stream for file/folder activities:
   • file_created - New files added
   • file_changed - File content modified
   • file_deleted - Files removed
   • file_restored - Deleted files restored
2. Path Extraction: Parses activity objects to extract affected file paths.
3. Targeted Fetching: For modified items:
   • Fetches fresh metadata using WebDAV PROPFIND
   • Re-processes permissions
   • Updates database records
4. Deletion Handling: Processes deletion events by marking records as deleted in the database.
5. Activity Cursor Update: After processing all events, saves the latest activity ID for the next incremental sync cycle.

​

Sharing and Permissions Sync

​

Simplified Personal Model

1. Default Ownership: The authenticated user is assigned OWNER permissions for all files and folders
2. Share Information: The connector can detect shares via Nextcloud’s OCS Share API
3. Permission Types: Maps Nextcloud permissions (READ, UPDATE, DELETE, SHARE) to PipesHub permission types

​

Nextcloud Permission Mapping

• Permission 31 (ALL): Maps to OWNER
• Permissions with DELETE or UPDATE: Maps to WRITE
• Permission with READ only: Maps to READ

​

Incremental Sync with Activity API

​

Activity-Based Change Detection

1. Activity Query: Fetches activities since last sync cursor
2. Activity Types Processed:
   • file_created: New files added
   • file_changed: File content modified
   • file_deleted: Files removed
   • file_restored: Deleted files restored
3. Path Extraction: Parses activity objects to extract affected file paths
4. Targeted Updates: Only fetches fresh metadata for changed files
5. Cursor Update: Saves latest activity ID for next incremental sync

​

Performance Optimization

• Path Cache: Maintains in-memory map of paths to record IDs
• Batch Processing: Groups updates into configurable batch sizes
• Rate Limiting: Respects API rate limits (50 requests/second default)
• Concurrent Batches: Processes up to 5 batches simultaneously

​

Streaming Support

1. WebDAV Download: Uses authenticated WebDAV GET requests
2. Streaming Response: Files are streamed to avoid memory issues with large files
3. Folder Handling: Folders cannot be downloaded (only individual files)

​

Usage

• Files can be downloaded through the stream_record method
• No public signed URLs (authentication required for all downloads)
• Maintains security by requiring valid credentials for every download

​

Supported Features

​

Invalid Credentials

1. Verify your username is correct
2. Ensure you’re using an App Password, not your main password
3. Check that the app password hasn’t been revoked in Nextcloud Security settings
4. Verify the Base URL is correct (should not end with /)

​

Base URL Incorrect

1. Ensure Base URL includes protocol (e.g., https://)
2. Verify the Nextcloud instance is accessible from your network
3. Check for any proxy or firewall restrictions

​

Slow Sync Performance

1. Adjust batch size - smaller batches for limited memory, larger for better throughput
2. Configure file extension filters to exclude unnecessary file types
3. Use date filters to limit scope of sync
4. Check rate limiting settings and adjust if needed

​

High Memory Usage

1. Reduce batch size from default 100 to 50 or lower
2. Limit concurrent batch processing
3. Enable file extension filters to reduce total file count
4. Consider splitting large folder structures across multiple connectors

​

Sync Strategy

• Use Incremental Sync: After initial setup, rely on incremental syncs for efficiency
• Schedule Syncs Wisely: Set sync intervals based on your activity patterns (e.g., every 60 minutes for continuous updates)

​

Filter Configuration

• Be Specific: Only sync file types you need to index using file extension filters
• Use Date Filters: Apply date filters to optimize sync scope and performance
• Review Regularly: Audit your filters to ensure they match current needs

​

Monitoring

• Monitor First Sync: The initial full sync may take time depending on your file count
• Test Connection: Always test the connection after configuration changes
• Check Logs: Regularly review sync logs for errors or warnings

​

Security

• Use App Passwords: Always use generated app passwords rather than your main Nextcloud password
• Revoke Unused Tokens: Regularly review and revoke unused app passwords in Nextcloud Security settings
• Secure Transmission: All API calls use HTTPS for encrypted communication
