BookStack

Documentation and wiki platform

✅ Ready📚 Documentation Available

Overview

BookStack is a free and open-source wiki and documentation platform similar to Confluence that is designed for creating, organizing, and storing information in a simple, self-hosted environment.

Book-based Structure

It uses a hierarchical structure based on real-world books for organization: Shelves → Books → Chapters → Pages BookStack provides multiple ways through which it can be deployed (e.g., Docker, Ubuntu 24.04 Installation Script, and many other 3rd party hosting options). Official Installation Guide: https://www.bookstackapp.com/docs/admin/installation/

⚠️ Note on API Rate Limits BookStack defaults to 180 API requests per minute. To prevent sync failures on large documentation bases, we recommend increasing the API_REQUESTS_PER_MIN variable to around 1000-1500 in your BookStack server’s .env file.

Standard/Ubuntu: Edit the .env file in your installation root (usually /var/www/bookstack/.env).

Docker: Add API_REQUESTS_PER_MIN: 1000 under the environment: section of your docker-compose.yml file and recreate the container.

Configuration Guide

Generate API Token in BookStack

BookStack uses a system of Token IDs and Token Secrets to authenticate external applications and scripts via its built-in REST API.The API operations performed with the token will have the same permissions as the user who generated it.It is recommended to use a user with admin permissions to create the api token because sync requires permission to read all entities (shelves, books, pages, etc.) aswell as read the audit log to which only admin users have access.

Prerequisites

The user generating the token must have a role assigned that includes the “Access system API” permission. (The default Admin role usually has this permission).

Creating a Token

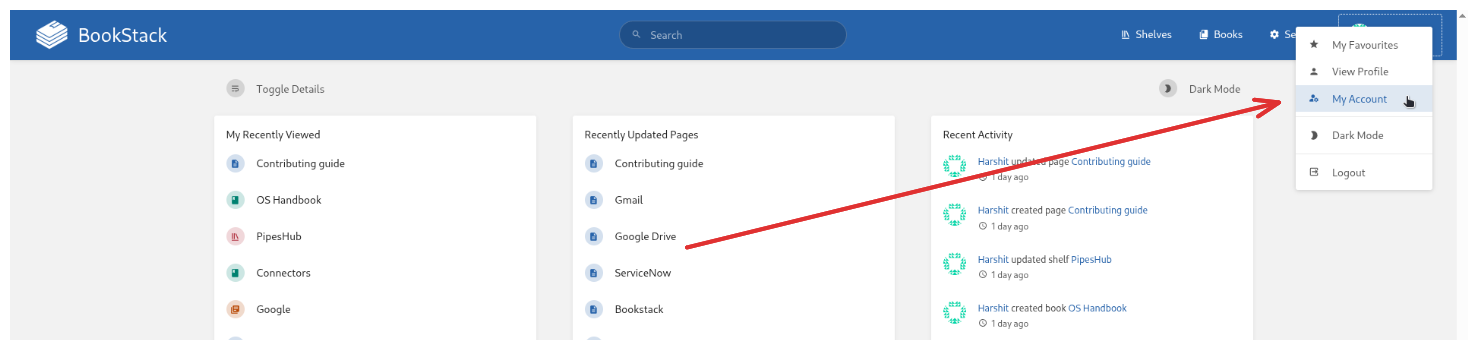

Navigate to Profile: Click on your user profile icon (in the top right corner) and select “My Account”.

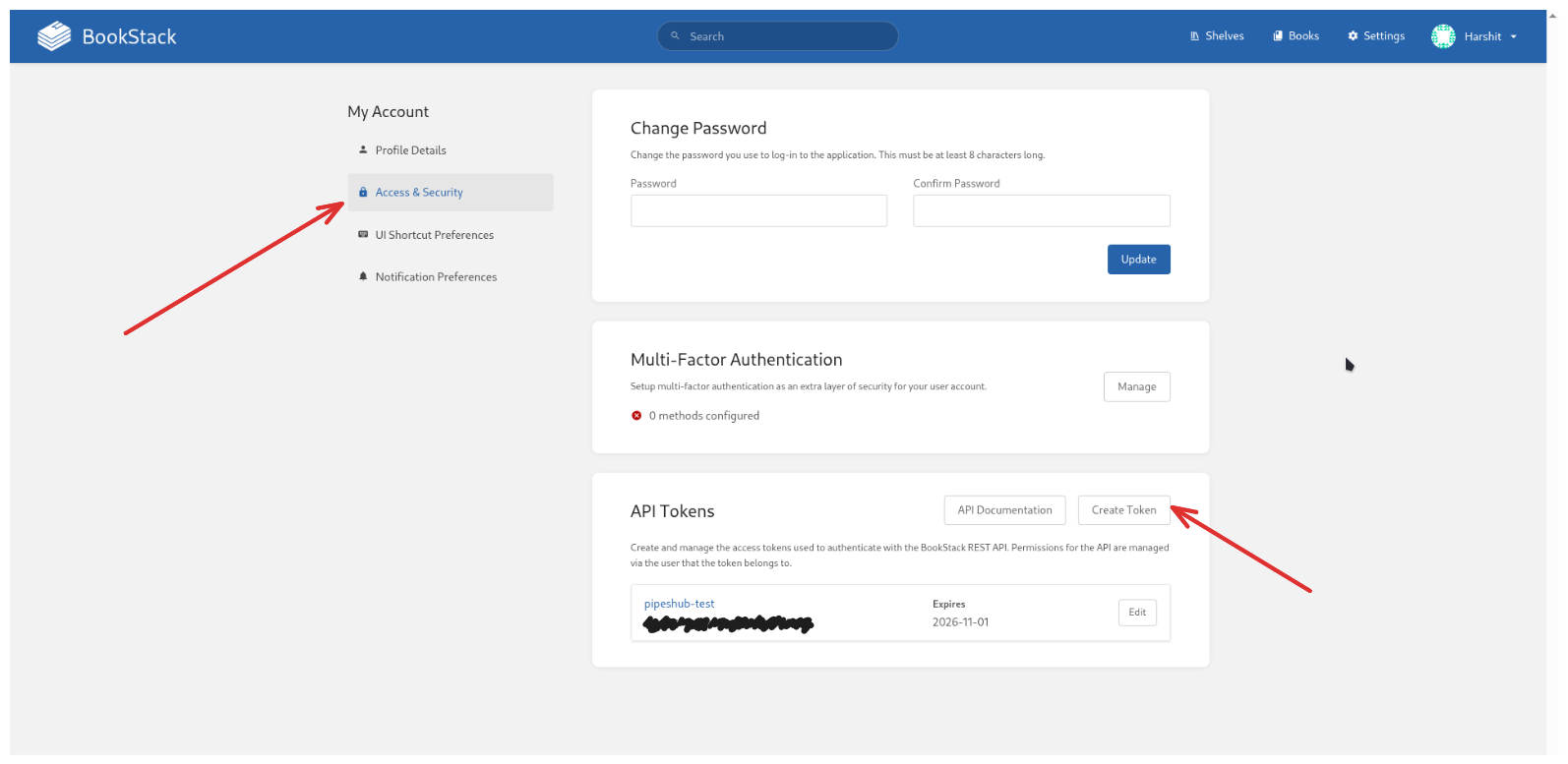

Find API Tokens Section: On the left-hand side of the “My Account” page, go to the “Access & Security” tab, and you should see the “API Tokens” section at the bottom.
Create New Token: Click the “Create Token” button.

Enter Details:
- Name: Enter a descriptive name for the token (e.g., “Pipeshub-Integration”).
- Expiry Date (Optional): Set an expiration date if you want the token to automatically become invalid after a certain time for security purposes.

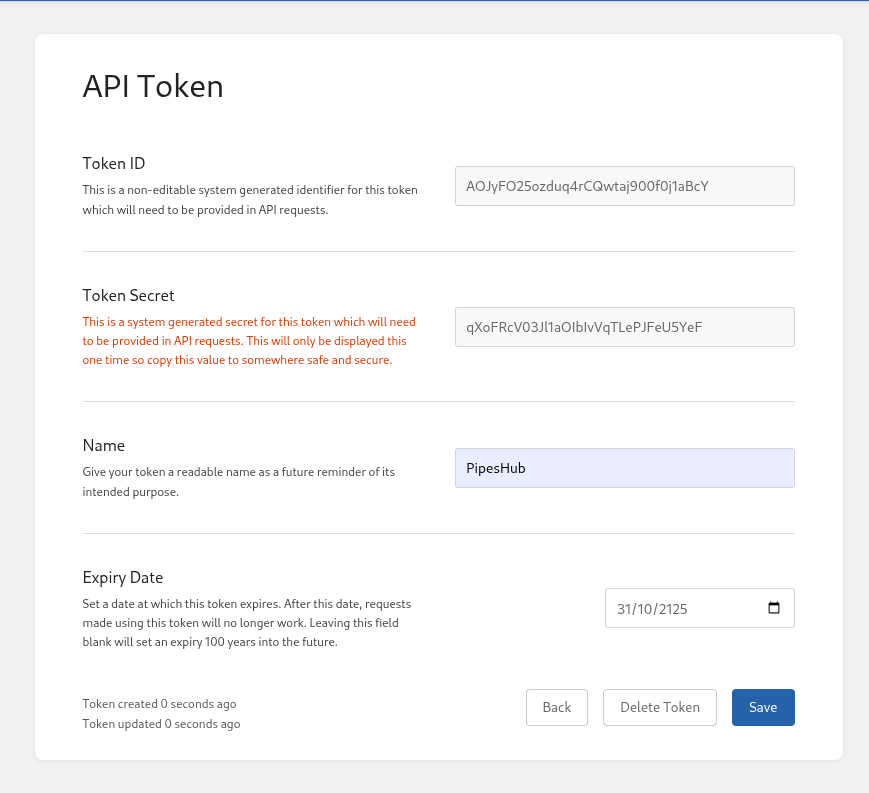

Save and Copy: Click “Save”.

⚠️ CRITICAL: The Token ID and Token Secret will be displayed immediately and only once. You must copy both values now, as the Secret cannot be retrieved later.

Connect BookStack to PipesHub

The integration requires three pieces of information:

BookStack Base URL (the URL in which your BookStack instance is deployed, e.g., https://bookstack.mycompany.com)
API Token ID
API Token Secret

Connection Steps

Step 1: Access and Configure Connector

Go to Connector Settings in the PipesHub dashboard.
Select the BookStack Connector.
Click the Configure Setting button.

Step 2: Input Credentials

Paste the BookStack Base URL.
Paste the BookStack Token ID.
Paste the BookStack Token Secret.

Step 3: Set Sync Strategy

Set your sync strategy as Manual or Webhooks (to be implemented)

Step 4: Activate Connection

Click Enable App button.
The BookStack Connector is now active and will start syncing the shelves, books, chapters, and pages.

FAQ

My sync is stalling or failing on large wikis

This is usually caused by BookStack’s default API rate limit.Please refer to the Overview section above to see how to increase the API_REQUESTS_PER_MIN variable in your BookStack deployment’s .env or docker-compose.yml file.

Does the API Token expire?

It depends on how you created it. During token creation, the “Expiry Date” field is optional. If you left it blank, the token will expire in 100 years. If you set a date, you will need to generate a new token and update the connector settings in PipesHub before that date.

What permissions are required?

The user account generating the token must have the “Access system API” role permission.We strongly recommend using an Admin account because non-admin users cannot access the “Audit Log,” which the connector uses to track changes and keep your data in sync efficiently.

How often does the connector sync data?

The connector can be configured to sync data on a schedule or manually. Webhooks are planned for future implementation to enable real-time synchronization.

Facing issues not mentioned here?

If you’re experiencing issues not covered in this documentation, please check the docker logs for bookstack to see if it’s failing from there, otherwise feel free to reach out to our support team for assistance on our discord.

Connector Workflow

Synchronization Process

The run_sync method executes a complete synchronization cycle. It follows a mandatory, sequential four-step process which checks if sync points are created. If not, it runs the full sync of BookStack, fetching all users, roles, books, pages, etc., then creates a sync point when they run successfully.

Step	Function Called	Data Type Synced	Purpose
1	`await self._sync_users()`	Users	Ensures all user accounts are present in the local system.
2	`await self._sync_user_groups()`	User Groups (Roles)	Creates/updates groups and establishes user-to-group memberships.
3	`await self._sync_record_groups()`	Shelves, Books, Chapters	Syncs the content hierarchy and sets up permissions.
4	`await self._sync_records()`	Pages, Attachments	Syncs the final content records and their specific permissions.

Common Synchronization Strategy

The _sync_users function first checks the Sync Point for the last synchronization timestamp.

Full Sync: If no prior timestamp is found, a full sync is performed, fetching all entities (users, roles, books, pages, etc.) from the BookStack API and passing them to the data processor for creation. After which, the timestamp is stored as a sync point in ArangoDB with the key as {app_id}/BOOKSTACK/{SyncDataPointType}/bookstack/{entity_type}/global
Incremental Sync (Audit Log-Based): If a timestamp exists, the process switches to an incremental approach using the BookStack Audit Log to find changes since the last sync.

1. User Synchronization

The user synchronization process ensures the local system’s user base is an up-to-date mirror of the BookStack instance.

1.1 Full Sync

If no timestamp is found in the sync point, it runs a full sync, fetching all users from the BookStack API and passing them to the data processor for creation or update.

1.2 Incremental Sync

Since BookStack does not have a native incremental user API, the connector relies on three parallel audit log queries to detect activity since the last_sync_timestamp:

Event Type	Handler Function	Action Taken
`user_create`	`_handle_user_create_event`	Parses the user ID, filters the newly fetched list of all users to isolate the new entry, and submits the new user to the data processor.
`user_update`	`_handle_user_update_event`	Two-Phase Update: 1. Reuses the create handler to update the user’s name/email. 2. Fetches the user’s roles, deletes their old group edges in the database, and re-syncs all their associated roles to manage group membership changes.
`user_delete`	`_handle_user_delete_event`	Parses the user ID, looks up the user’s email in the local database, and calls `on_user_removed` in the data processor to untie the user from the app. (pending implementation)

This is done by adding query params to the Audit Log API, e.g.:

?filter[type]=user_update&filter[created_at:gte]=2025-10-16T00:00:00Z

with time in ISO UTC format.

2. Role Synchronization

2.1 Full User Group Sync

The full sync is comprehensive and requires fetching data in parallel:

Concurrent Data Fetching: It fetches all BookStack roles and concurrently fetches their full details (including member lists). It also concurrently fetches full details for all individual users to obtain emails needed for group mapping.
Batch Construction: It iterates over the detailed roles, creating an AppUserGroup for each role and corresponding AppUser objects for all members found within that role.
Processing: The final batch of (AppUserGroup, List[AppUser]) tuples is sent to the data processor via on_new_user_groups() to establish the group entity and all membership edges.

2.2 Incremental Role Sync

The incremental sync relies on the BookStack Audit Log for role-related events since the last timestamp:

Event Type	Handler Function	Action Taken
`role_create`	`_handle_role_create_event`	Fetches the full details of the new role and its members, then submits them to the data processor for creation. This handles the group entity itself.
`role_update`	`_handle_role_update_event`	Triggers a delete operation followed immediately by a create operation for the role ID. This ensures the role’s name and, most importantly, its member list are fully updated in the local system.
`role_delete`	`_handle_role_delete_event`	Calls `on_user_group_deleted` in the data processor to remove the group entity and all associated user-to-group edges.
`user_update` (Handled in 2.2)	`_handle_user_update_event`	This is a critical cross-reference. A user’s role change triggers a resync of the affected role, guaranteeing role membership updates even if the role entity itself wasn’t directly modified.

3. Record Group Synchronization

This phase synchronizes the hierarchical containers for content: Shelves, Books, and Chapters. These are mapped to the local system’s RecordGroup entity.

3.1 Full Record Group Sync

The full sync iterates through all three content types—shelves, books, and chapters—to create and update all record group entities and their associated permissions.

Iterative Content Sync: The function calls _sync_content_type_as_record_group for bookshelf, book, and chapter sequentially.
Item Processing: For each content item (e.g., a Book):
- It determines the parent relationship (e.g., a Chapter’s parent is its Book).
- It creates a RecordGroup object with a unique external ID (e.g., book/123).
- It fetches permissions via get_content_permissions and resolves them using _parse_bookstack_permissions.
Batch Submission: The resulting tuples of (RecordGroup, List[Permissions]) are collected and submitted in batches to the data processor via on_new_record_groups().

NOTE: In BookStack, the “Shelf” is used only for organizing items and is not a parent of any book.

3.2 Incremental Record Group Sync

Incremental sync is managed by listening to Audit Log events for each of the three content types (bookshelf, book, and chapter) within the _sync_record_groups_events helper function.

Event Type	Handler Function	Content Type(s) Affected	Action Taken
`[type]_create`	`_handle_record_group_create_event`	Shelf, Book, Chapter	Fetches the full details of the new item and calls the processor to perform an upsert (create or update) operation.
`[type]_update`	`_handle_record_group_create_event`	Shelf, Book, Chapter	Reuses the create handler logic to update metadata and permissions for the existing record group.
`permissions_update`	`_handle_record_group_create_event`	Shelf, Book, Chapter	Triggers an upsert (same as the create handler) for the specific item to ensure permissions are refreshed.
`[type]_delete`	`_handle_record_group_delete_event`	Shelf, Book, Chapter	(Intended) Calls `on_record_group_deleted` in the data processor to remove the entity from the local system.

4. Records Synchronization

This is the final synchronization step, focused on synchronizing content units: Pages (which hold the main content) and any associated attachments. These are mapped to the local system’s FileRecord entity.

4.1 Full Records Sync

Function: async def _sync_records_full() -> NoneThe full sync processes all pages using paginated API calls and performs a detailed change detection for each record.

Pagination and Batching: The connector paginates through all BookStack pages (self.data_source.list_pages) in batches.
Per-Record Processing: For each page, the _process_bookstack_page helper function is called. This function:
- Checks Existence: Queries the local data store to see if a record with the page’s external ID already exists.
- Detects Changes: Uses the page’s revision_count to detect content changes (content_changed) and metadata changes (metadata_changed).
- Creates RecordUpdate: Generates a FileRecord object and wraps it with a RecordUpdate object, which encapsulates all detected changes and new permissions.
Handling Updates: The _handle_record_updates function processes the RecordUpdate object by:
- New Records: Batched for bulk submission via on_new_records.
- Content/Metadata Changes: Trigger on_record_content_update or on_record_metadata_update.
- Permission Changes: Trigger on_updated_record_permissions.
- Deleted Records: Trigger deletion via on_record_deleted.

4.2 Incremental Records Sync

Function: async def _sync_records_incremental(...) -> NoneIncremental sync for records uses the Audit Log to identify specific pages that have been created, updated, or moved since the last successful synchronization.

Event Type	Handler Function	Action Taken
`page_create`	`_handle_page_upsert_event`	Fetches the full, current page details and triggers the standard record processing (`_process_bookstack_page`) to create the new record and its permissions.
`page_update`	`_handle_page_upsert_event`	Fetches the current page details and triggers `_process_bookstack_page` to update content and metadata.
`permissions_update`	`_handle_page_upsert_event`	If the loggable type is ‘page’, it triggers a full upsert to refresh all permissions and metadata for that record.
`page_delete`	(Intended)	(Intended) Calls `on_record_deleted` in the data processor to remove the page record.
`page_move`	(Intended)	(Intended) Updates the page’s `external_record_group_id` to reflect its new parent (Book or Chapter), triggering a metadata update.

Miscellaneous

Methods

create_connector: It handles the instantiation and initialization of the core dependency, the DataSourceEntitiesProcessor, before creating and returning the BookStackConnector object itself.
init: The async setup method. It retrieves the required BookStack API credentials (base_url, token_id, and token_secret) from the configuration service and initializes the BookStackClient and BookStackDataSource.
stream_record: This exports the BookStack page as raw markdown.

BookStackDataSource

Auto-generated comprehensive BookStack API client wrapper. Generated from BookStack API documentation at: https://demo.bookstackapp.com/api/docs
