MariaDB Toolset

Schema introspection and SQL execution on MariaDB

ReadyDatabase

​
Overview

The MariaDB toolset lets AI agents read schema information and run SQL queries against a MariaDB database. Use it to answer analytical questions, explore table structures, and fetch data in natural language.

​
Key Capabilities

  • Ask questions about your data in plain English
  • Run complex queries, joins, and aggregations across tables
  • Explore the database structure and relationships between tables
  • Generate reports and summaries from live data
  • Download query results as CSV when they are too large to render in chat

​
Available Tools

ToolDescription
execute_queryRun a SQL query against the configured MariaDB database
list_tablesList all tables in the database
fetch_db_schemaFetch schema for the database: tables, columns, keys
get_tables_schemaFetch schema (columns, primary keys, foreign keys) for specific tables
get_table_ddlGet the CREATE TABLE statement for a table

​
Configuration Guide

If you already have a MariaDB server, skip this step.Run a local MariaDB container:
docker run --name mariadb-test \
  -e MARIADB_ROOT_PASSWORD=rootpass \
  -e MARIADB_DATABASE=test_db \
  -p 3306:3306 \
  -d mariadb:latest
This starts MariaDB on localhost:3306 with:
  • Username: root
  • Password: rootpass
  • Database: test_db

​
Option B: Install locally

Install MariaDB from the official MariaDB downloads page and follow the installer for your OS. After install, start the server and note your host, port, username, and password.

​
Verify the connection

mysql -h localhost -P 3306 -u root -p
Enter your password when prompted. If you reach the MariaDB [(none)]> prompt, the server is ready.
Only an admin creates the MariaDB toolset instance. Once created, every user in the workspace can authenticate with their own database credentials.
  1. Click your profile icon and select Workspace Settings

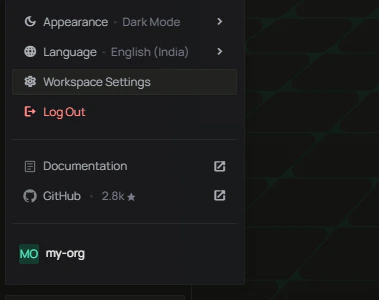

Open Workspace Settings from profile menu
  1. In the sidebar, click Actions

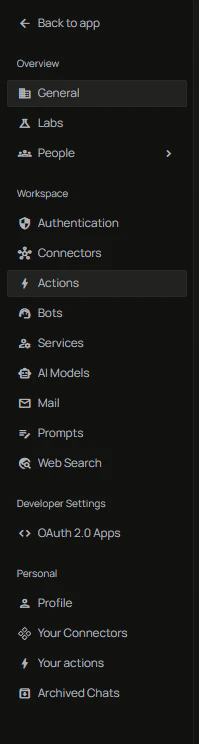

Navigate to Actions in Workspace Settings sidebar

​
Find MariaDB and click Setup

Locate the MariaDB card in the list of available toolsets and click + Setup.

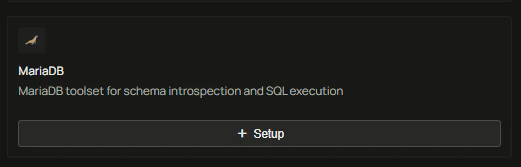

MariaDB toolset setup card

​
Configure the instance

Fill in the action configuration form:
FieldDescription
Instance nameA name for this toolset instance (e.g. MariaDB)
HostMariaDB server host (e.g. localhost)
PortMariaDB server port (default 3306)
DatabaseDatabase name
Click Create to save.

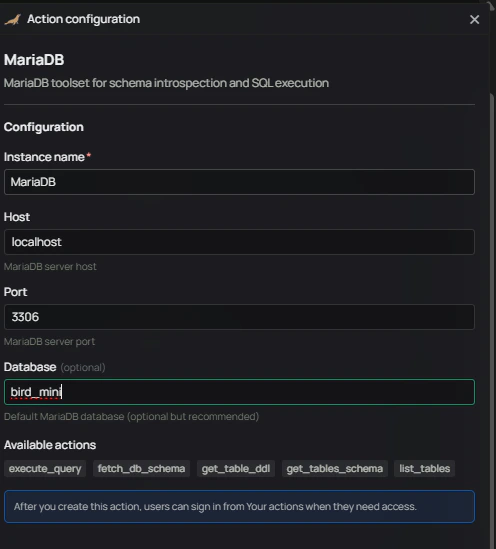

MariaDB action configuration form
The admin only provides connection details (host, port, database). Username and password are entered by each user when they authenticate.
After the admin creates the toolset, every user must authenticate with their own MariaDB username and password before using it.

​
Find the MariaDB card

In Workspace Settings > Actions, locate the MariaDB card. It will show 1 inactive instance, meaning the toolset is set up but not yet authenticated for your user.

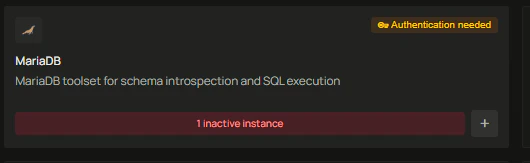

MariaDB card showing 1 inactive instance

​
Open the MariaDB toolset

Click the card to open it. You will see the instance marked as Authentication needed.

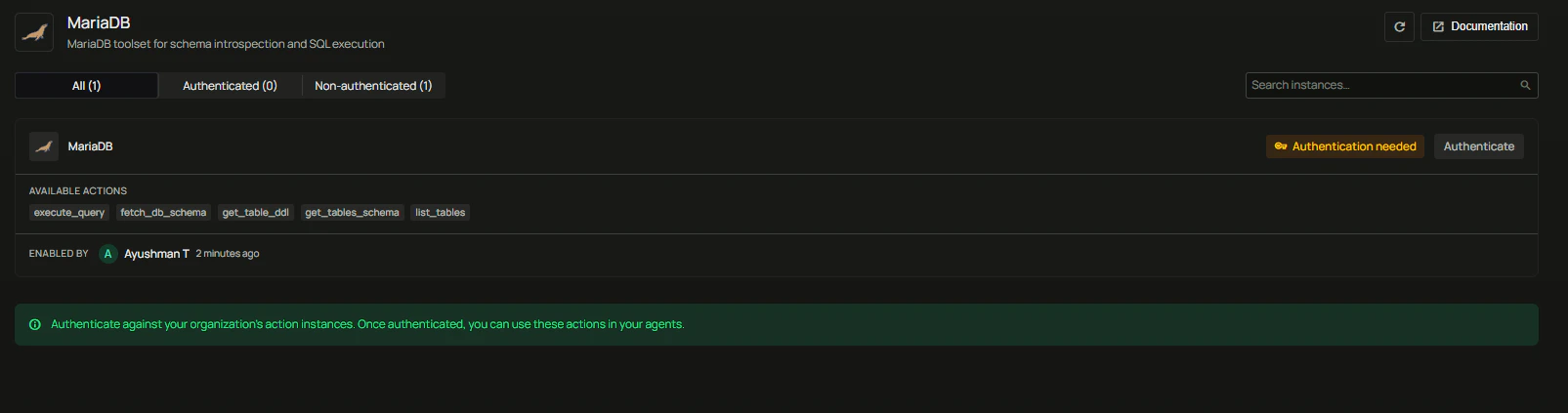

MariaDB toolset page showing authentication needed

​
Enter your credentials

Click Authenticate and enter your MariaDB Username and Password, then click Save credentials.

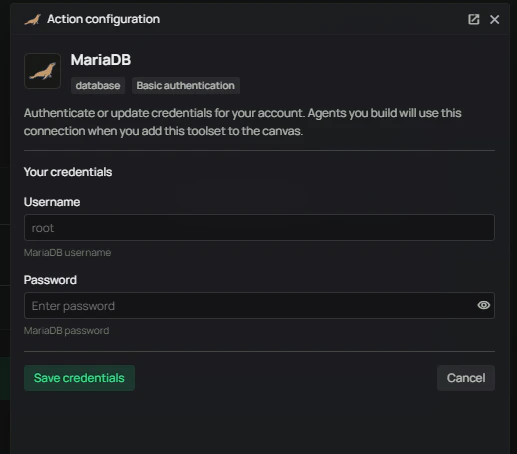

Enter MariaDB username and password
Once saved, the toolset status changes to Authenticated and is ready to use in agents.

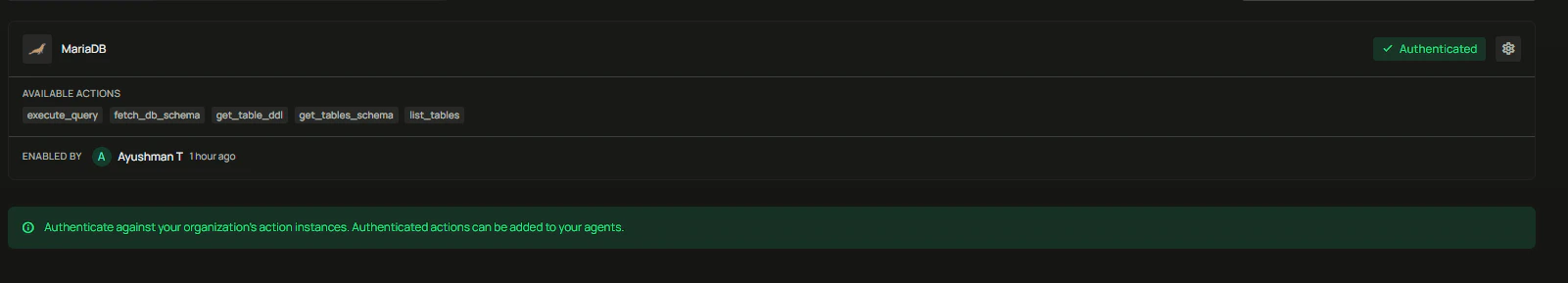

MariaDB toolset authenticated
  1. Open the Agent Builder
  2. In the left sidebar, expand Tools
  3. Drag the MariaDB toolset onto the canvas
  4. Connect it to your agent

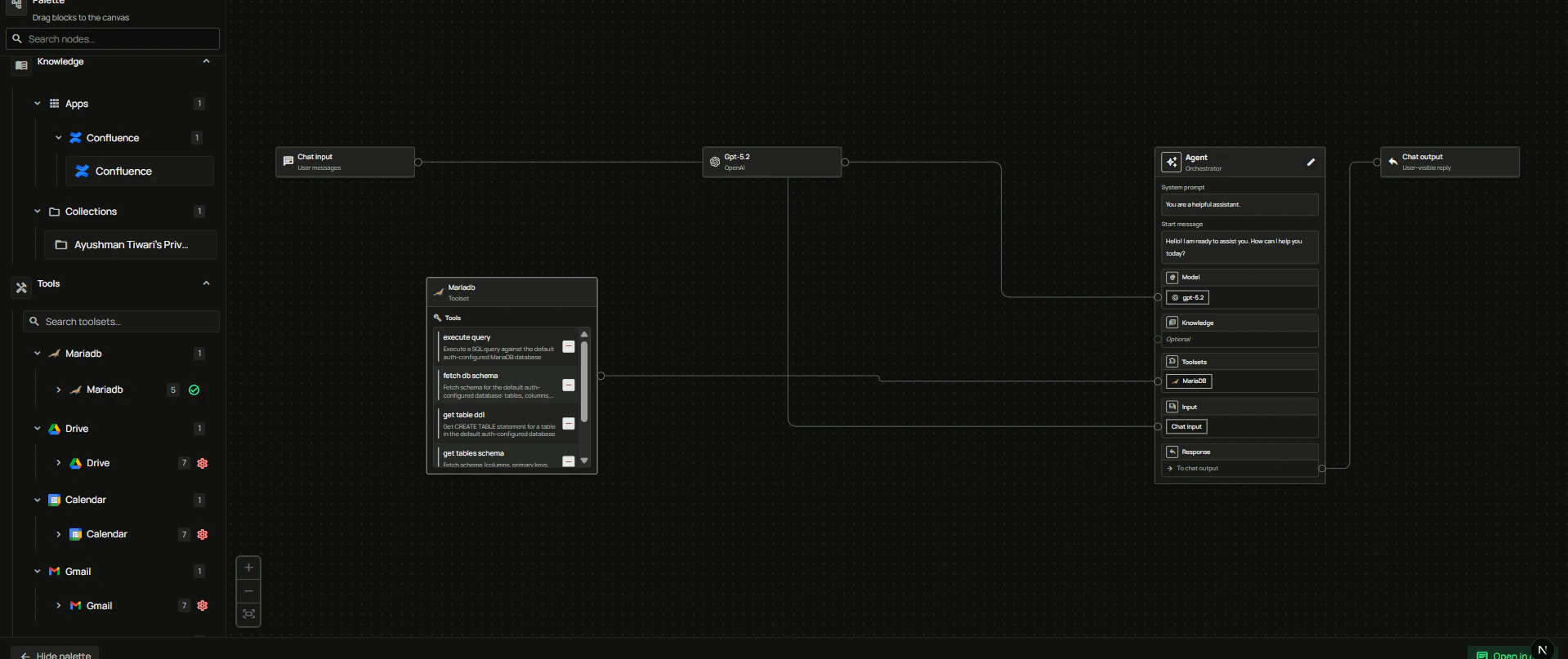

MariaDB toolset connected in Agent Builder
Ask the agent natural-language questions — it will generate SQL, run it, and return results.

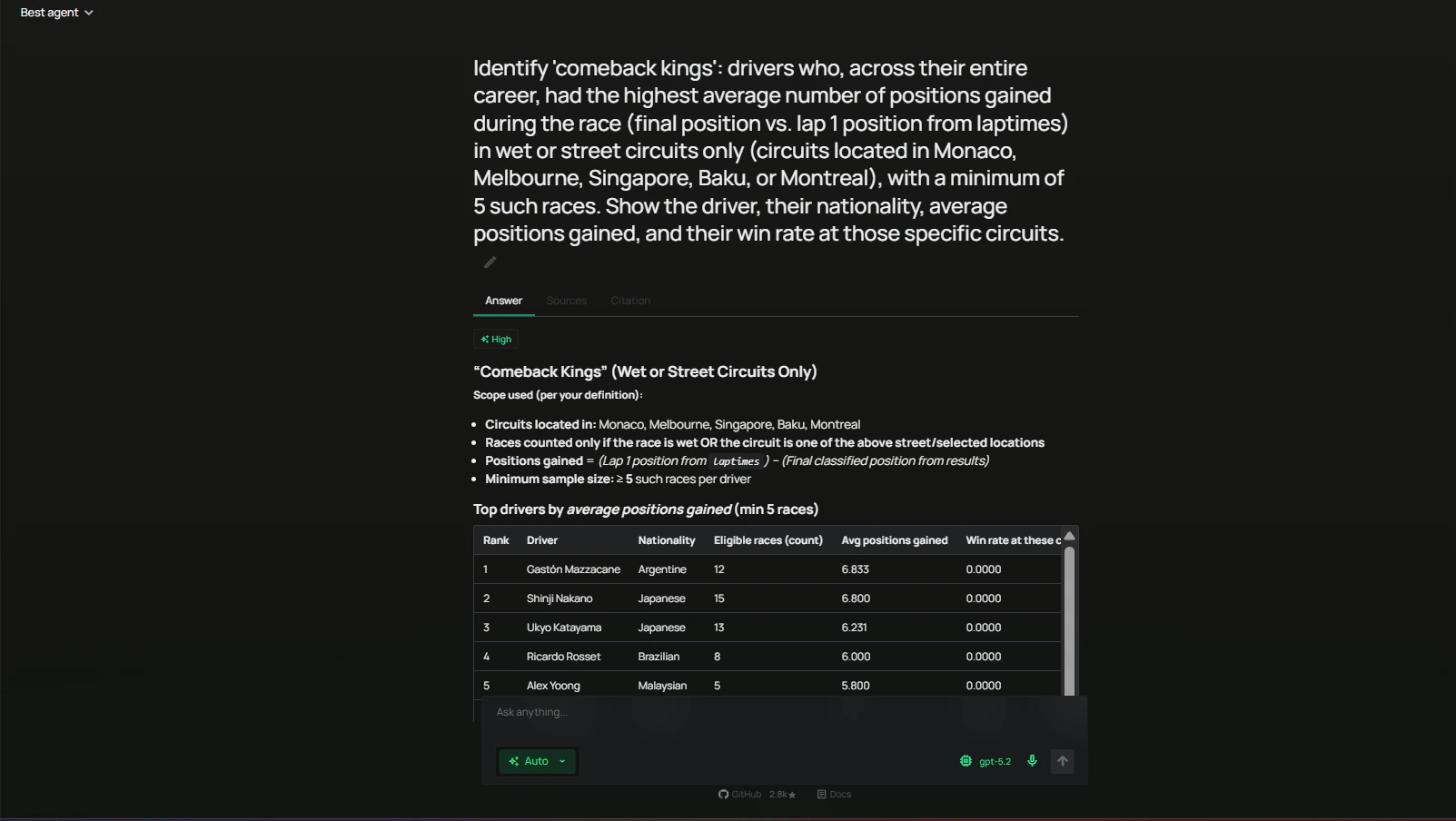

Agent answering a question using MariaDB

​
FAQ

  • Admin creates the toolset instance with connection details (host, port, database).
  • Each user authenticates separately with their own MariaDB username and password.
This way, every user queries the database with their own permissions.
Yes. Use the public host and port of your MariaDB server. Make sure the server allows connections from the PipesHub deployment and that the user account has the required privileges.
Grant the minimum privileges required for your use case. For read-only analytics, SELECT on the relevant database is usually enough:
GRANT SELECT ON test_db.* TO 'username'@'%';
Yes. An admin can update the instance configuration from Workspace Settings > Actions. Users may need to re-authenticate after a change.

​
Usage Tips

How do I list all tables? Ask the agent “list all tables in the database”. How do I explore a table’s structure? Ask “show me the schema for the orders table” or “get the CREATE TABLE for customers”. How do I run a query? Describe the question in natural language, for example: “what are the top 10 customers by total order value?” — the agent will generate and run the SQL. How do I limit the scope of a query? Mention a specific table or time range in your question, e.g. “from the events table in the last 30 days”.
